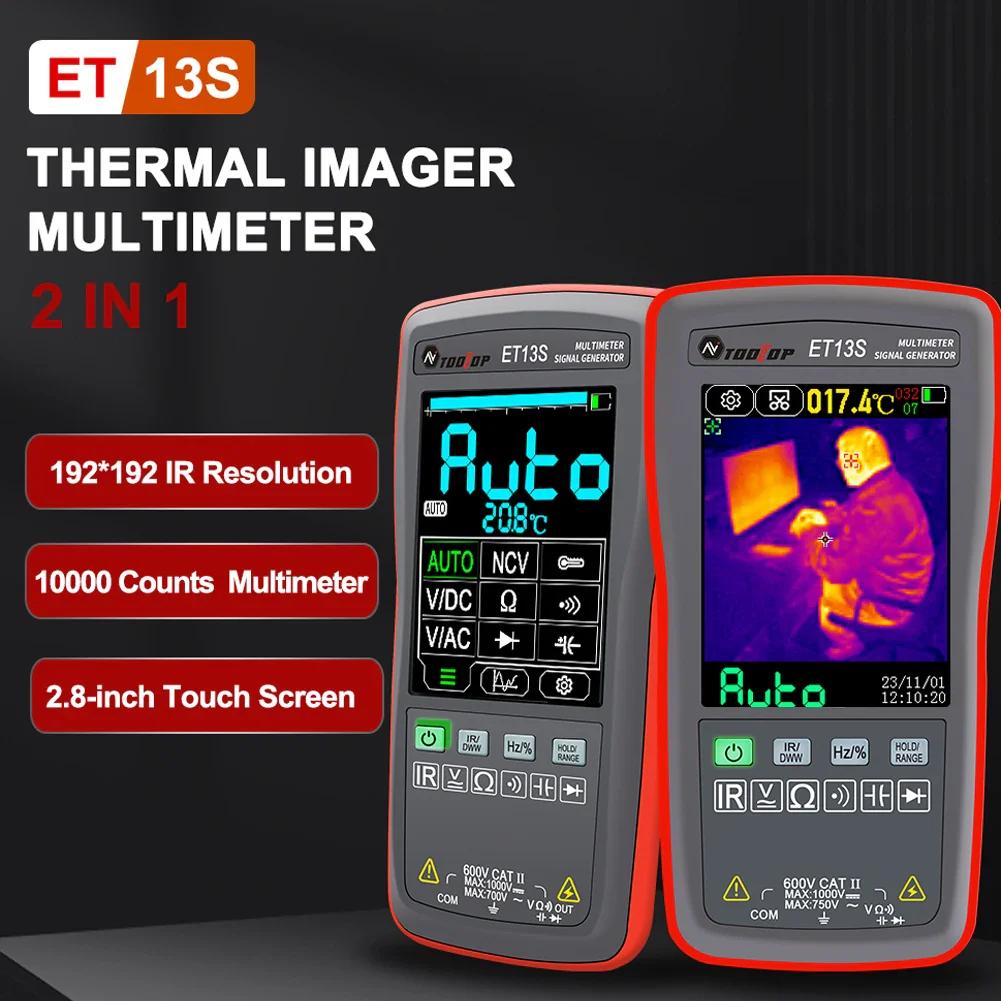

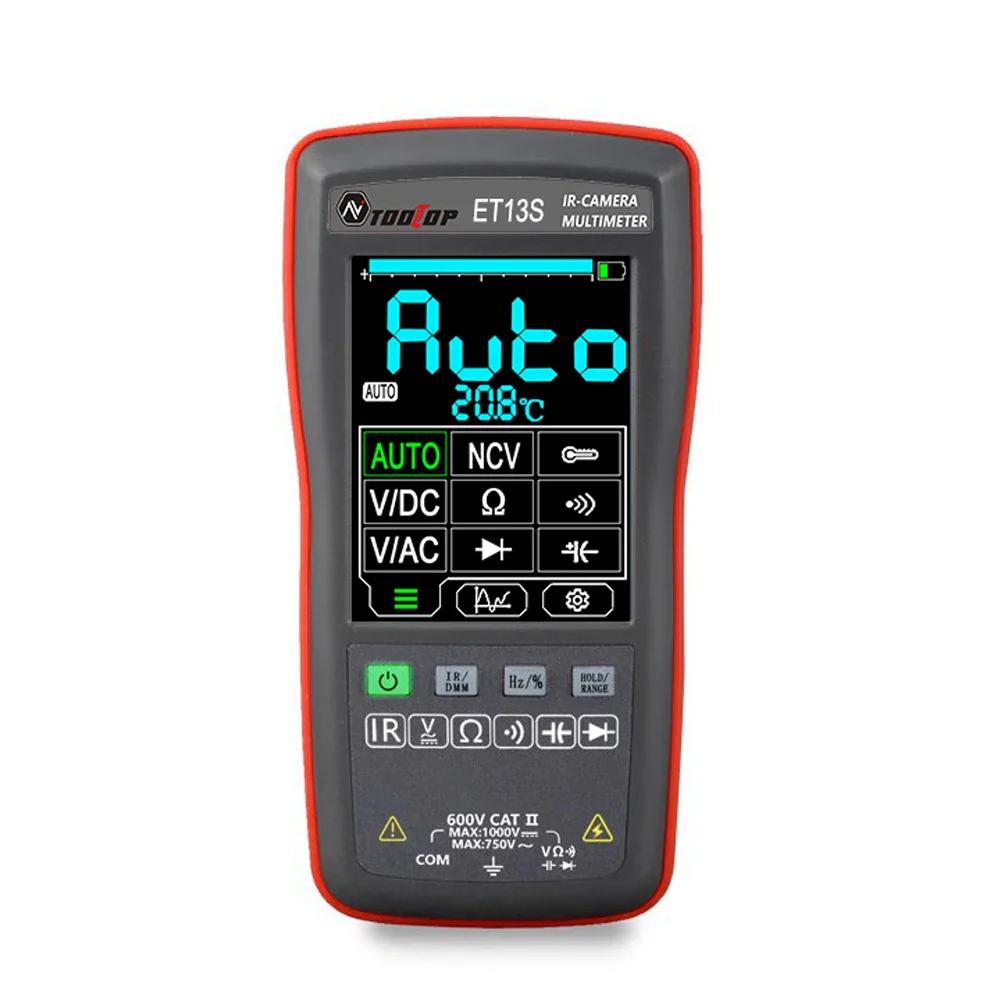

The ET13S integrates both thermal imager and 10,000-count multimeter functions to meet various measurement needs. It can accurately measure the temperature ranges from -20℃ to 550℃, providing an integrated solution for temperature detection and electrical parameter measurement. Compact and lightweight, easy to carry to various work sites, is the practical tool for electricians and maintenance technicians. Widely used in various occasions requiring temperature detection and electrical parameter measurement, such as electric power, chemical industry, construction, firefighting, and other fields. It mainly measures and analyzes the thermal properties of various materials, energy, environment, and industrial production. It can also be used in teaching and scientific research experiments to provide a scientific basis and understand the knowledge of thermal properties.

Features:
【2-in-1 Design】: The ET13S integrates both thermal imager and 10,000-count multimeter functions to meet various measurement needs. It can accurately measure the temperature ranges from -20℃ to 550℃, providing an integrated solution for temperature detection and electrical parameter measurement. Compact and lightweight, easy to carry to various work sites, such as transportation, energy, electronics manufacturing, and other fields, is the practical tool for electricians and maintenance technicians.
【2.8-inch Touchscreen & Convenient Operation】: Equipped with a 2.8-inch touchscreen, the 192*192 high infrared resolution provides clear imaging. Supporting one button to directly access the functions, and simple and intuitive operation. Users can set the parameters according to their needs to make the measurement results more accurate. Both Chinese and English display can be set depending on your reading preference.
【Thermal Imager Function】: The display clearly shows the maximum, minimum, and center temperatures, allowing users to understand the temperature distribution more comprehensively. The product is preset with five color palettes of iron red, rainbowcolor, fusioncolor, white-hot, and white-hot high light, which users can freely switch according to their actual needs to enhance the observation effect. And with automatic testing hotspot tracking function, can quickly locate the temperature anomaly area.
【10000-Count Multimeter Function】: The multimeter has comprehensive functions, including DCvoltage, ACvoltage, resistance, diode, continuity, capacitance, and other measurement modes, as well as analogue bar display, room temperature display, automatic measurement, NCV non-contact voltage test, temperature measurement, and so on. In addition, with the multimeter data chart recording and data transmission function, the measurement data can be saved in the device and transferred to the computers via USB interface, with the upper computers software for in-depth analysis.
【Intelligent Power Saving & Convenient Charging】: Built-in 3.7V 850mAh lithium battery, supports USB charging, with automatic screen shutdown and automatic power-off function, effectively prolonging battery life. Meanwhile, it is equipped with a USB Type-C data transfer interface, which is convenient for data transfer and analysis, further enhancing work efficiency and portability.
【Wide Applications】: Widely used in various occasions requiring temperature detection and electrical parameter measurement, such as electric power, chemical industry, construction, firefighting, and other fields. It mainly measures and analyzes the thermal properties of various materials, energy, environment, and industrial production. It can also be used in teaching and scientific research experiments to provide a scientific basis and understand the knowledge of thermal properties.

Specifications:
Name: Thermal Imager Multimeter
Material: plastics
Battery: 1 * built-in 850mAh lithium battery (included)
Imaging capture frequency: 20Hz
Thermal imaging pixel: 192* 192
Display resolution: 240*240
Field of view (Fov): 50.0°(H) × 50°(V) /72.1°(D)
Emissivity: 0.1-0.99 is tunable and 0.95 is the default
Measurement temperature ranges: -20℃ to +550℃
Mode: Automatic gain
Color board: Iron Red, Rainbowcolor, Fusioncolor, White Heat, White Heat Highlights
Temperature measurement error: >0℃±2℃ or ±2% ≤0℃±5℃ or ±5
Display temperature accuracy: 0.1℃/0.1℉

Multimeter parameters:
DChighest input voltage: 1000V
AC highest input voltage: 750V
Resistance highest measurement resistance: 99.9ΜΩ
Capacitance highest measurement capacity: 99.99mF
Duty cycle measurement ranges: 0.1%-99.9%
Diode measurement ranges: OV-3V
On-off detection maximum resistance: 999.9Ω
Display number: 9,999 words updated about 3 times per second

Other parameters of the device:
Display Screen: 2.8 inches, 320 * 480 resolution
Touchscreen: Resistive touchscreen
USB interface: Type-C USB
Storage capacity: 3.5MB
Imaging format: BMP file
Storage temperature: -20 to 60℃ (-4 to 140℉)
Working temperature: 0-50℃ (32-122℉)
Working humidity: <85%RH (Non-condensing)
Item size: 134 * 69 * 25mm / 5.28 * 2.72 * 0.98in
Item weight: 130g / 4.59ounce
Package size: 185 * 160 * 40mm / 7.28 * 6.30 * 1.57in
Package weight: 305g / 10.76ounce

Packing List:
1 * Thermal Imager Multimeter

Many Questions about Dropshipping Services Are As Follows:

1.How many orders can you handle per day?
we are a large company in Shenzhen,China,with a large warehouse that can handle large orders everyday.We send out countless parcels everyday.We can guarantee the order you request.

2.How fast can you process orders?
We will arrange shipment as soon as possible after you pay the order.Priority delivery for dropshipping order

3.Could you ship order without any receipts,invoices and promotional offer inside the package?
Absolutely!No invoices,receipts,promotional offer if you leave notes on the order(if you want,we can provide.)

4.If you need other products?
We can provide most products you need as much as possible1

If you have any other questions,please feel free to contact us.
We are very grateful to cooperate with you.

5.We can support CSV/Excel File Dropshipping.

6.There is no limited stock to fulfill the orders on a daily basis

Test & Measurement

ET13S 2in1 Thermal Imager Multimeter 10000 Counts Counts 2.8-inch Touchscreen -20℃ to 550℃ Temperature Measurement IR-Camera

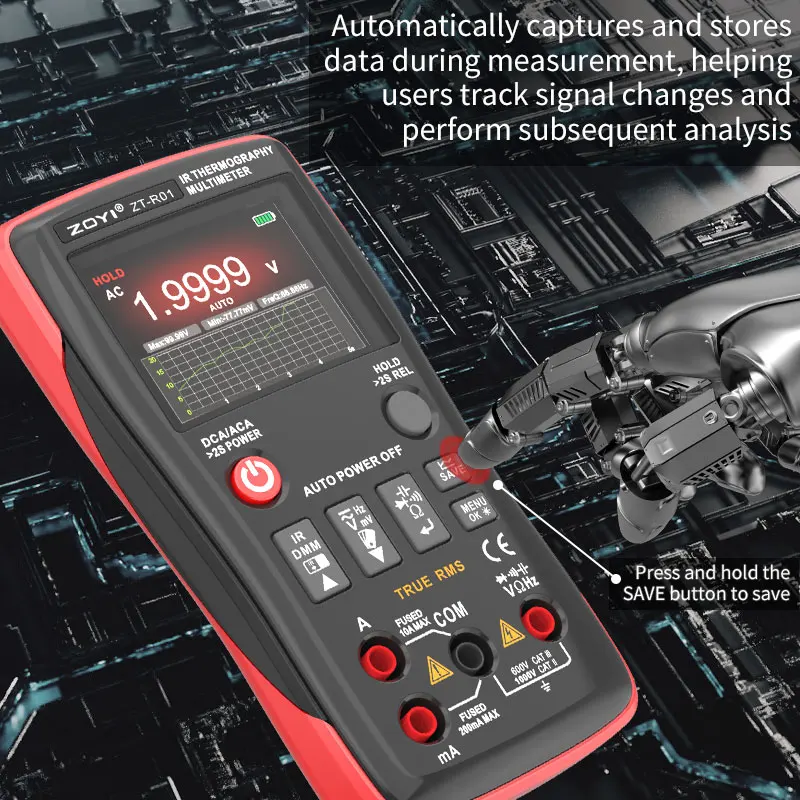

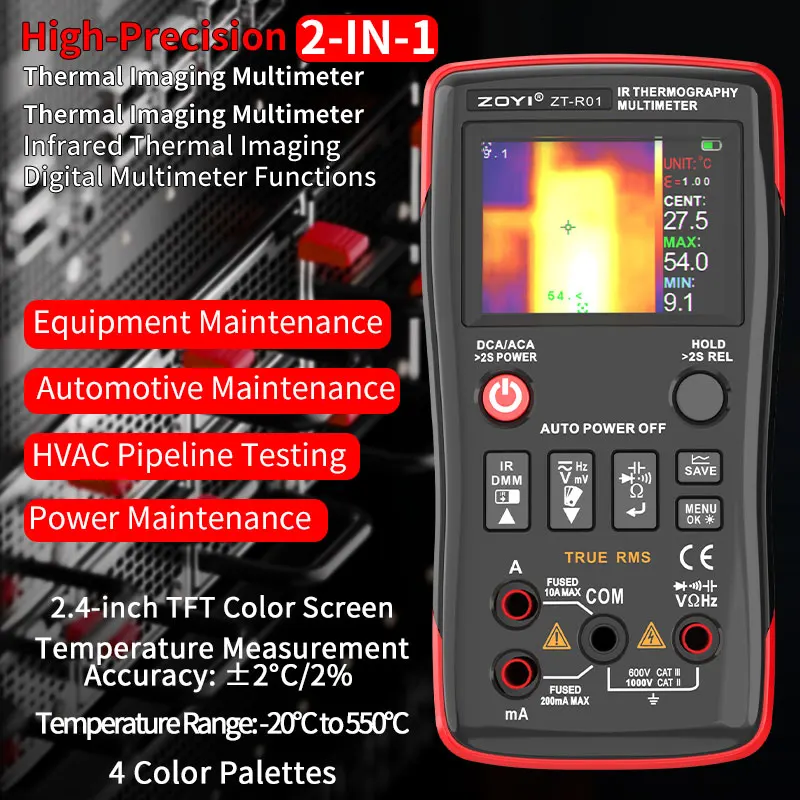

ZOYI ZT-R01 two-in-one infrared thermal imaging multimeter Industrial electric floor heating circuit board maintenance
