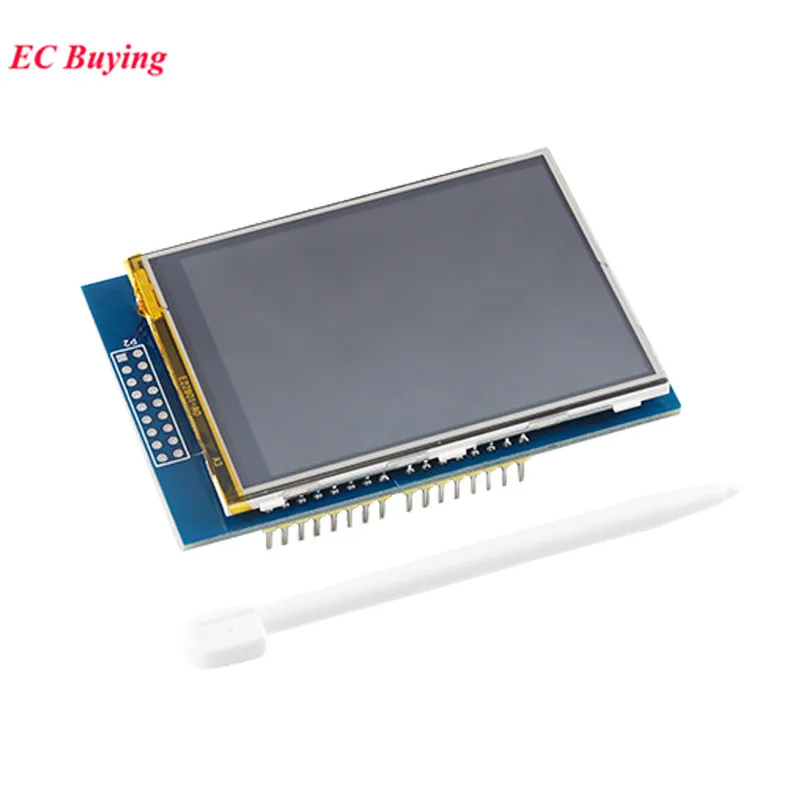

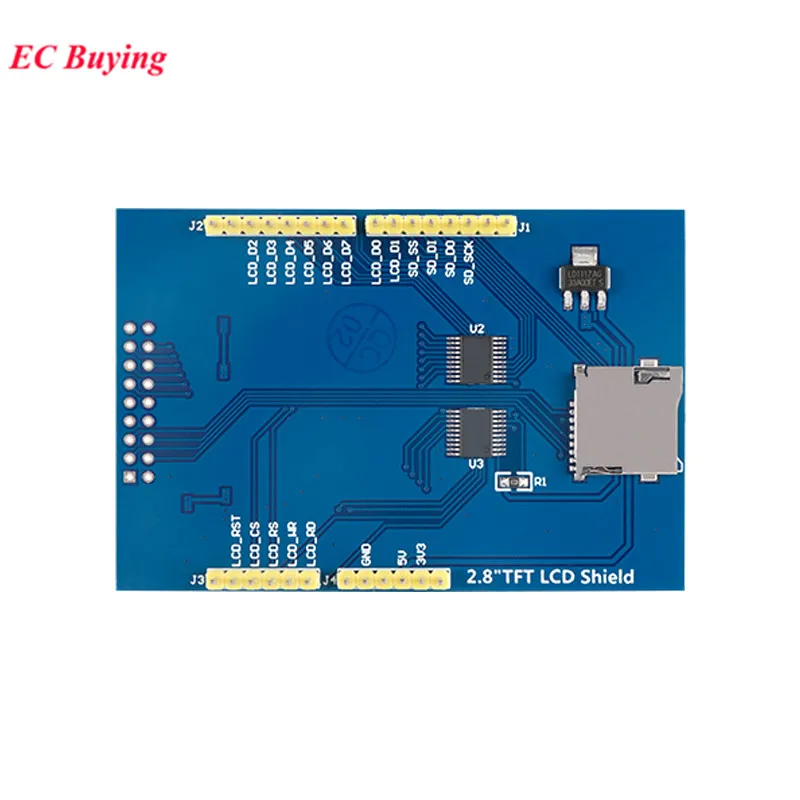

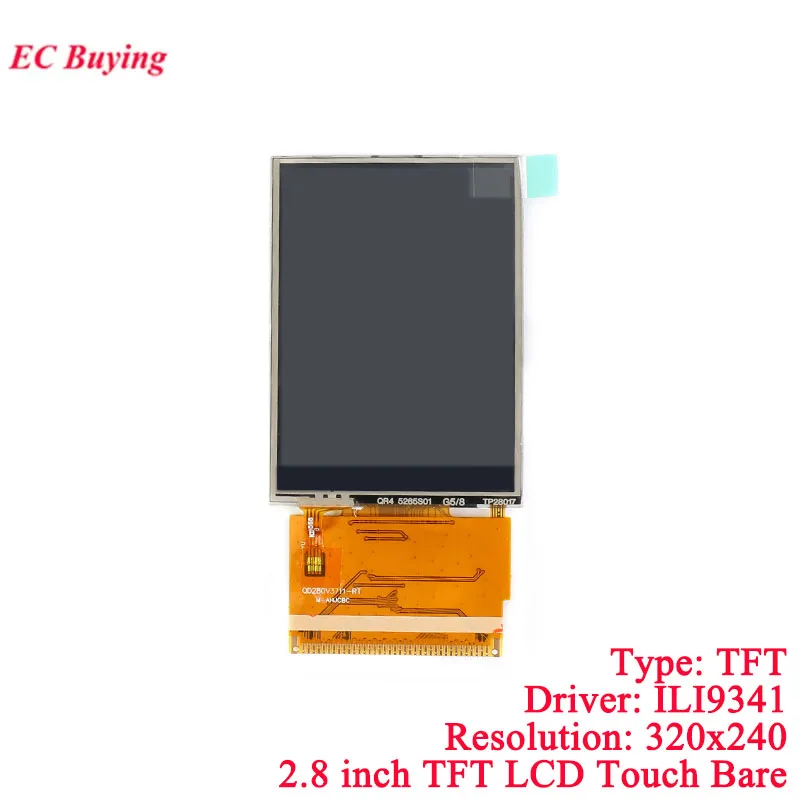

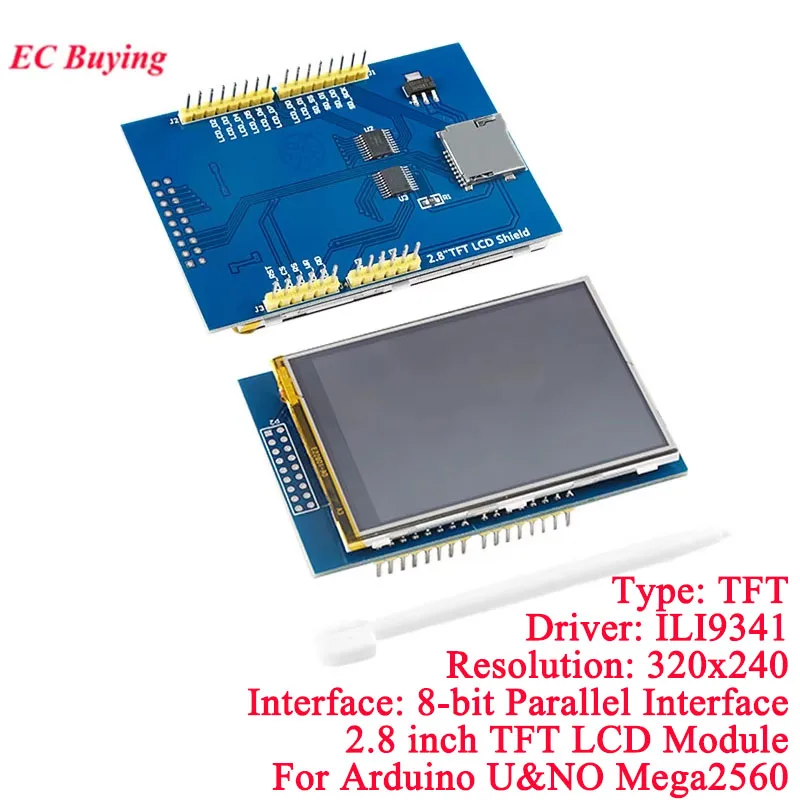

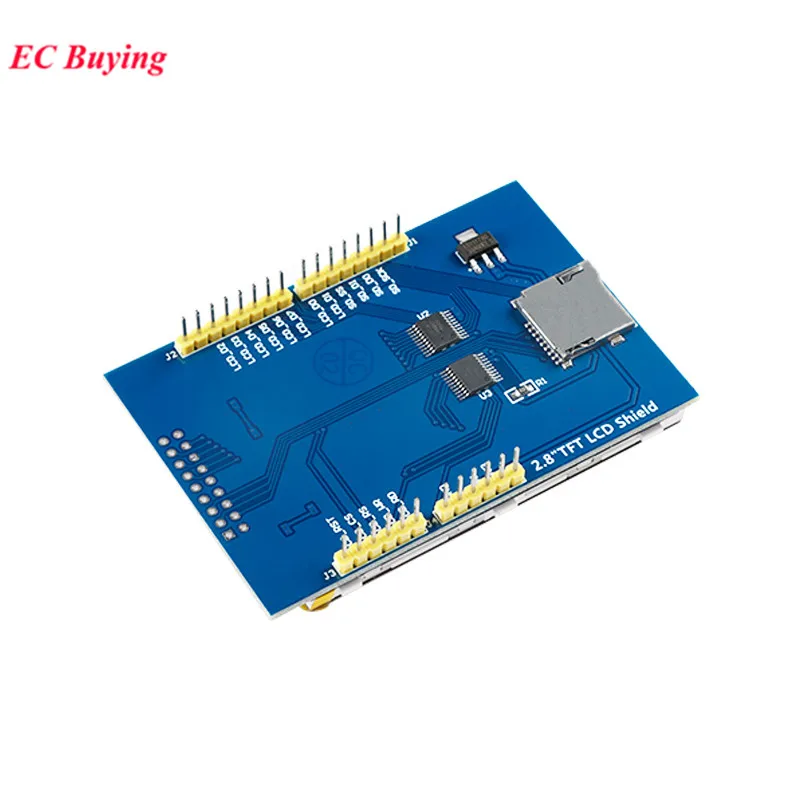

2.8 Inch 2.8" TFT Color LCD Touch Screen Display Module 320*240 ILI9341 Driver For Arduino R3 Mega2560 Development Board

Support for Arduino UNO and Mega2560 and other development boards to use directly without wiring

320X240 HD resolution, support touch function

Using 8-bit parallel bus, refresh faster than serial SPI

With SD card slot for easy expansion experiment

Provide for Arduino library, provide rich sample programs

Military-grade process standards, long-term stable work



SKU: MAR2808

Size: 2.8(inch)

Type: TFT

Driver chip: ILI9341

Resolution: 320*240 (Pixel)

Module interface: 8-bit parallel interface

Effective display area: 57.6x43.2(mm)

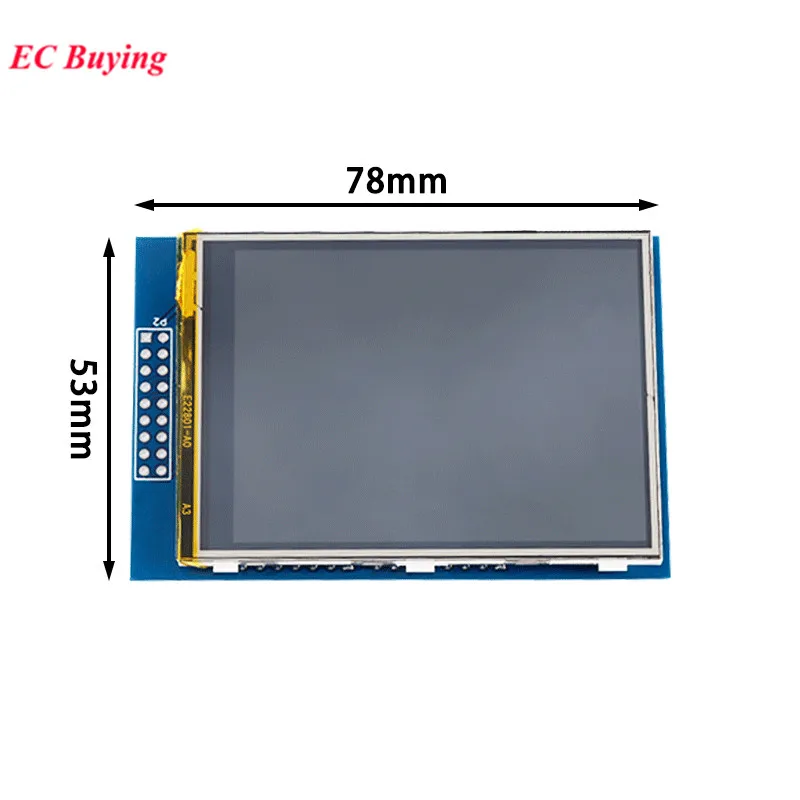

Module PCB size: 78.22x52.7(mm)

Working temperature: -20℃~70℃
