ANENG MH16 Ohm Tester Digital Multimeter Megometro Insulation Earth High Voltage Resistance Meter Tester Megohmmeter Tool

ANENG MH16 Ohm Tester Digital Multimeter Megometro Insulation Earth High Voltage Resistance Meter Tester Megohmmeter Tool


ANENG MH16 Ohm Tester Digital Multimeter Megometro Insulation Earth High Voltage Resistance Meter Tester Megohmmeter Tool


General:

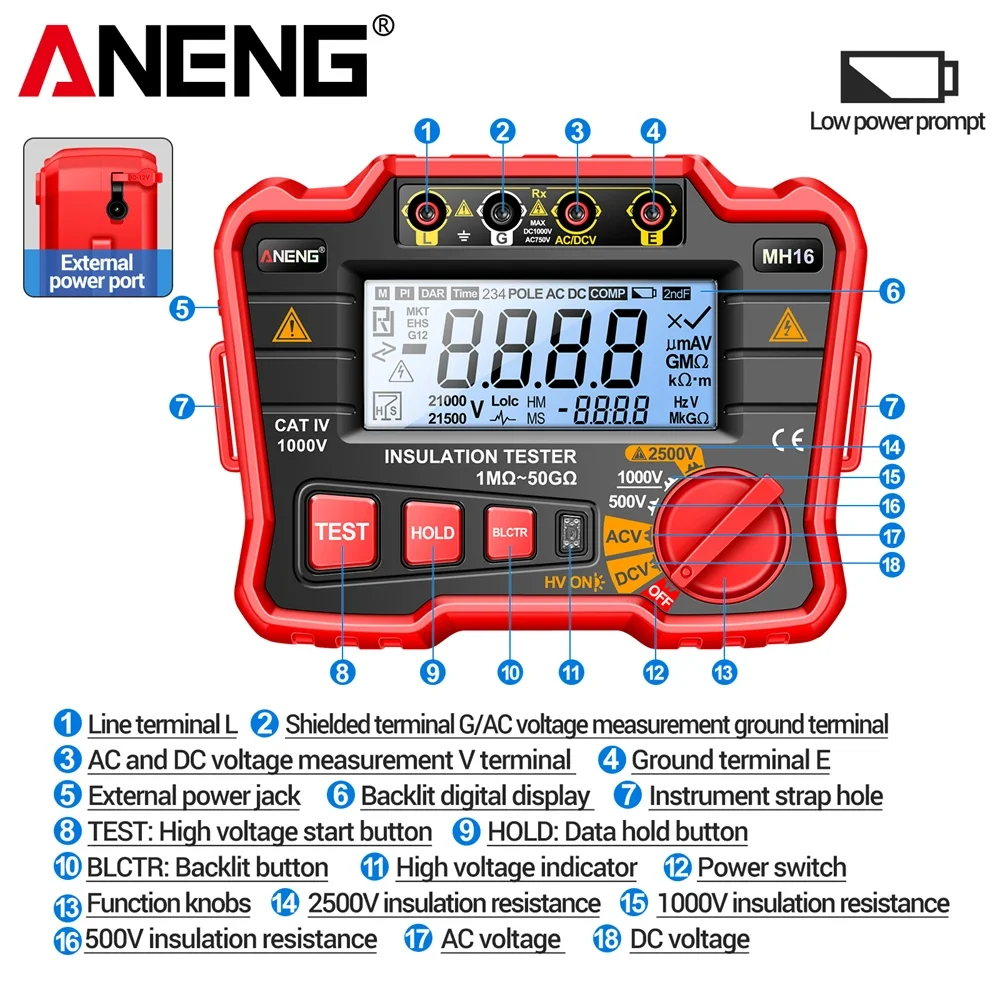

This instrument is a battery powered insulation resistance tester that can be used to measure DC voltage, AC voltage, resistance, and insulation resistance. When measuring insulation resistance, there are three test voltages to choose from: 500V, 1000V, and 2500V. This instrument has functions such as automatic discharge, automatic shutdown, backlight display, data saving, and low battery warning. It is easy to use and is a precision measuring instrument.

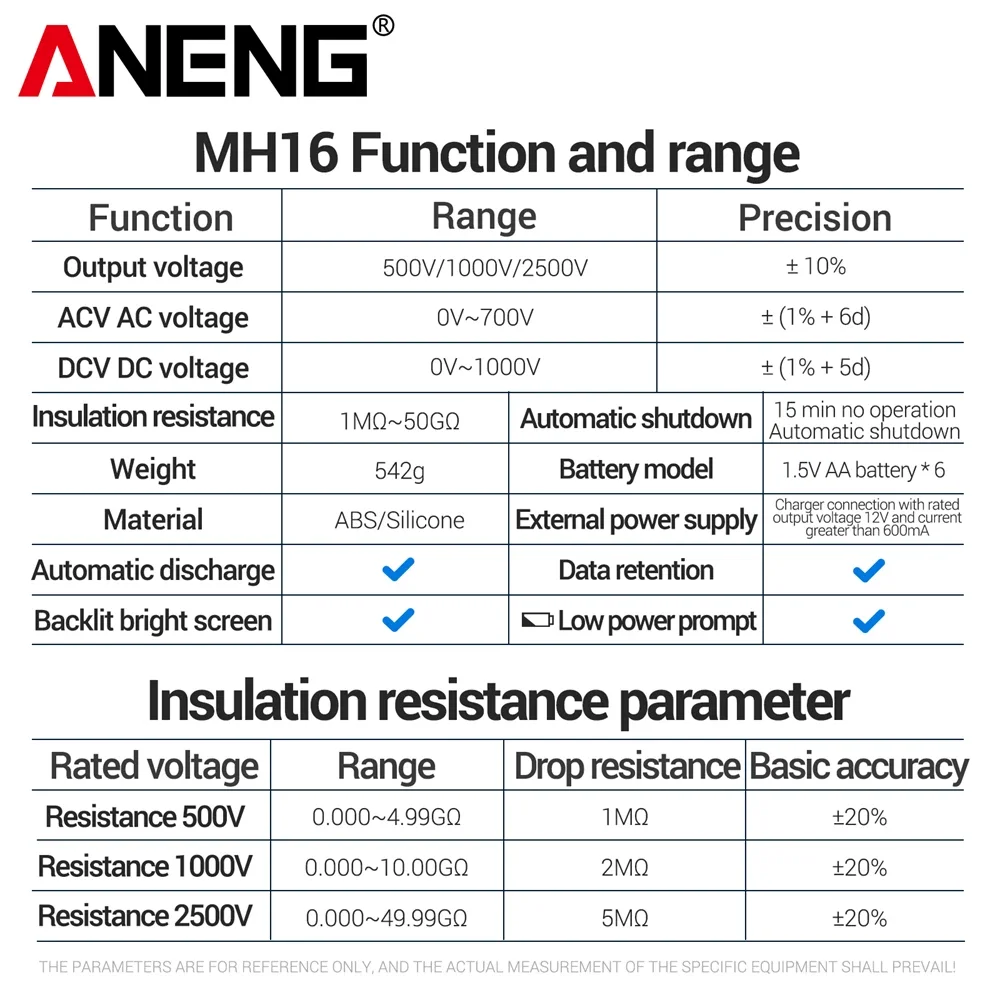

Functional range of insulation resistance
  Insulation resistance functional range:


Function

Range

Precision

Output voltage

500V/1000V/2500V

±10%

ACV AC voltage

0V~700V

±(1%+ 6d)

DCV DC voltage

0V~1000V

±(1%+ 5d)

Insulation resistance

1MΩ~50GΩ

Automatic shutdown

15 min no operationAutomatic shutdown

Material

ABS/Silicone

Battery model

1.5V AA battery* 6

Automatic discharge

√

Extemal power supply

Charger connection with ratedoutput voltage 12vand currengreaterthan 600mA

Backlit bright screen

√

Data retention

√

 Low power prompt

√





Insulation resistance parameter：

Rated voltage

Range

Drop resistance

Basic accuracy

Resistance 500V

0.000~4.99GΩ

1MΩ

+20%

Resistance 1000V

0.000~10.00GΩ

2MΩ

±20%

Resistance 2500V

0.000~49.99GΩ

5MΩ

±20%
THE PARAMETERS ARE FOR REFERENCE ONLY,AD THE ACTUAL MEASUREMENT OF THE SPECIFIC EQUIPMENT SHALL PREVAIL

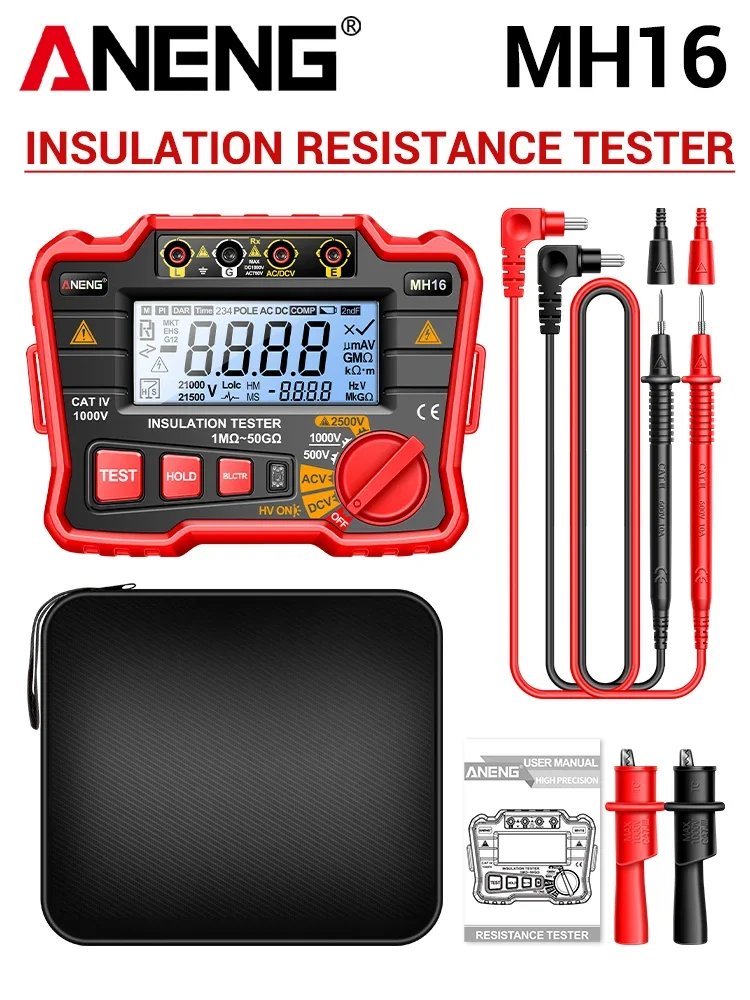

The packaging includes:
1 * Packaging box ( No Iinclude Battery )
1 * Storage bag
1 * Insulation resistance tester
1 *Instruction book
1 * Aligator clip X2
1 * Pen line


$22.37

Original: $74.58

-70%
ANENG MH16 Ohm Tester Digital Multimeter Megometro Insulation Earth High Voltage Resistance Meter Tester Megohmmeter Tool —

$74.58

$22.37
Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6
Product image 7

Description


ANENG MH16 Ohm Tester Digital Multimeter Megometro Insulation Earth High Voltage Resistance Meter Tester Megohmmeter Tool


General:
This instrument is a battery powered insulation resistance tester that can be used to measure DC voltage, AC voltage, resistance, and insulation resistance. When measuring insulation resistance, there are three test voltages to choose from: 500V, 1000V, and 2500V. This instrument has functions such as automatic discharge, automatic shutdown, backlight display, data saving, and low battery warning. It is easy to use and is a precision measuring instrument.
Functional range of insulation resistance
  Insulation resistance functional range:


Function

Range

Precision

Output voltage

500V/1000V/2500V

±10%

ACV AC voltage

0V~700V

±(1%+ 6d)

DCV DC voltage

0V~1000V

±(1%+ 5d)

Insulation resistance

1MΩ~50GΩ

Automatic shutdown

15 min no operationAutomatic shutdown

Material

ABS/Silicone

Battery model

1.5V AA battery* 6

Automatic discharge

√

Extemal power supply

Charger connection with ratedoutput voltage 12vand currengreaterthan 600mA

Backlit bright screen

√

Data retention

√

 Low power prompt

√





Insulation resistance parameter：

Rated voltage

Range

Drop resistance

Basic accuracy

Resistance 500V

0.000~4.99GΩ

1MΩ

+20%

Resistance 1000V

0.000~10.00GΩ

2MΩ

±20%

Resistance 2500V

0.000~49.99GΩ

5MΩ

±20%
THE PARAMETERS ARE FOR REFERENCE ONLY,AD THE ACTUAL MEASUREMENT OF THE SPECIFIC EQUIPMENT SHALL PREVAIL

The packaging includes:
1 * Packaging box ( No Iinclude Battery )
1 * Storage bag
1 * Insulation resistance tester
1 *Instruction book
1 * Aligator clip X2
1 * Pen line
