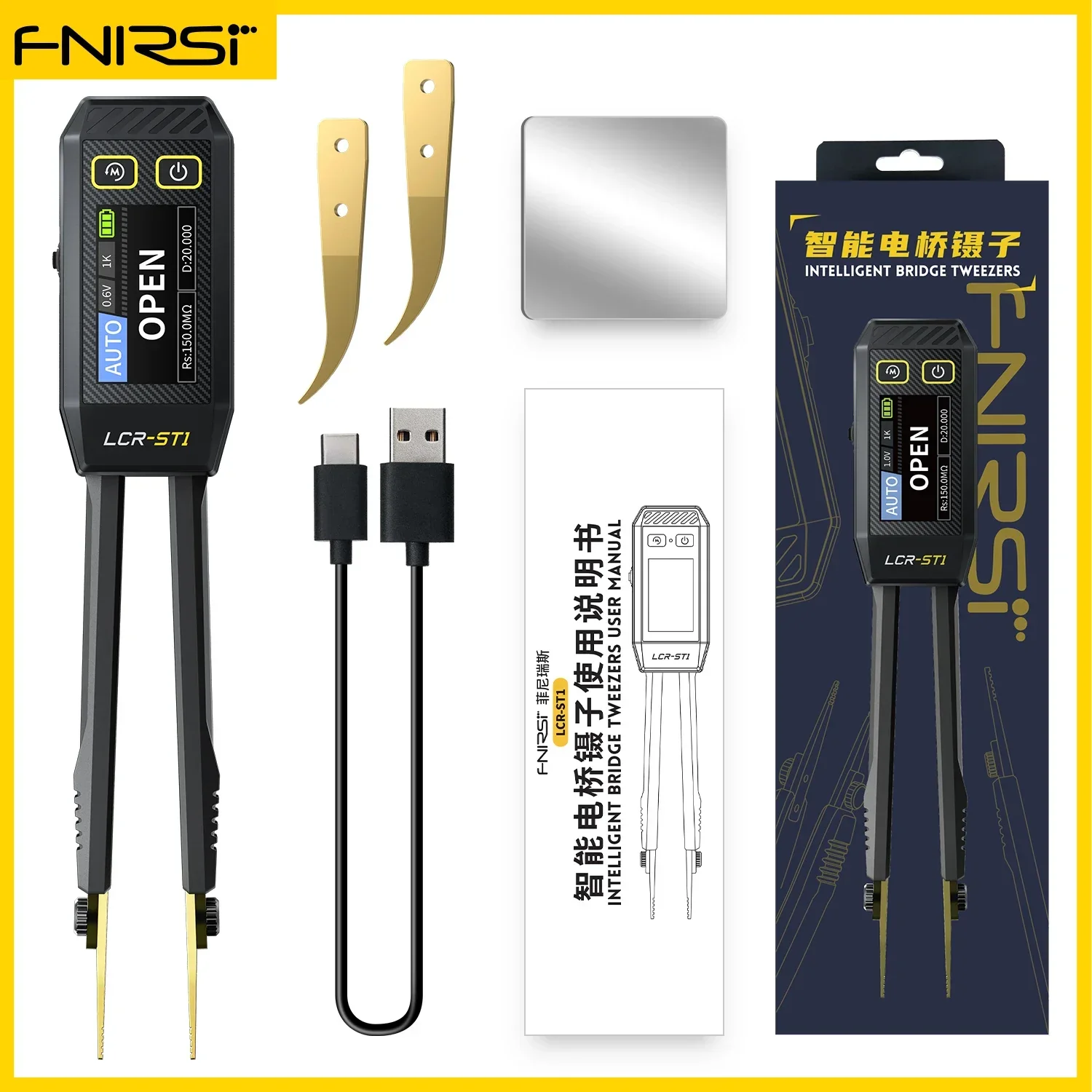

FNIRSI LCR-ST1 Smart Tweezer Mini Tester
LCR-ST1 Tweezer-Type LCR Tester
Product Overview:

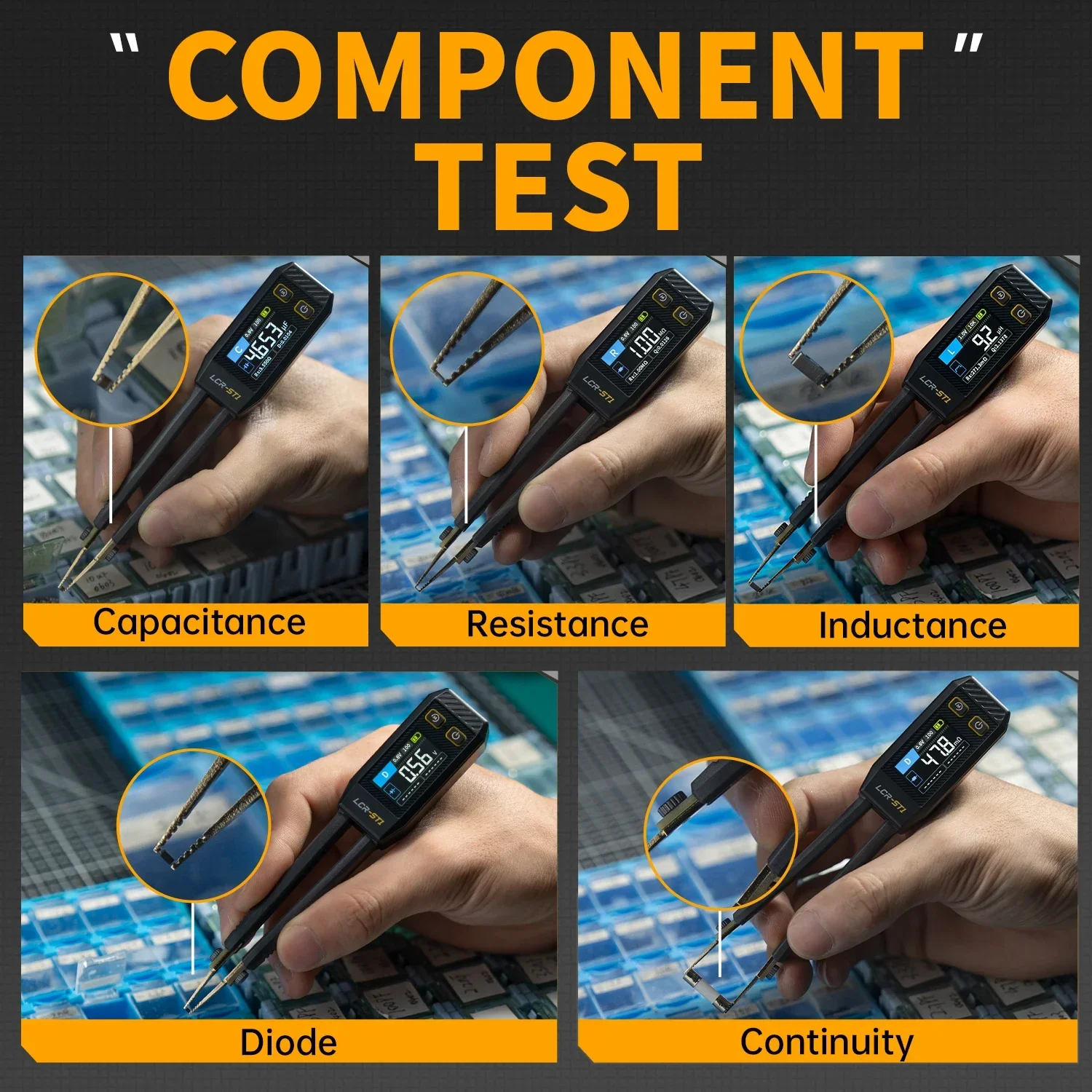

- The LCR-ST1 is a versatile, portable testing instrument designed for precise automatic measurements of resistance, capacitance, inductance, diodes, and continuity. It features a 1.14-inch color screen display and a magnetic adsorption function for added convenience.
Key Features:
- Advanced Measurement Technology: Ensures high accuracy and stability.
- Display: 1.14-inch color screen.
- Battery: Built-in 250mAh lithium battery for long-lasting usage.

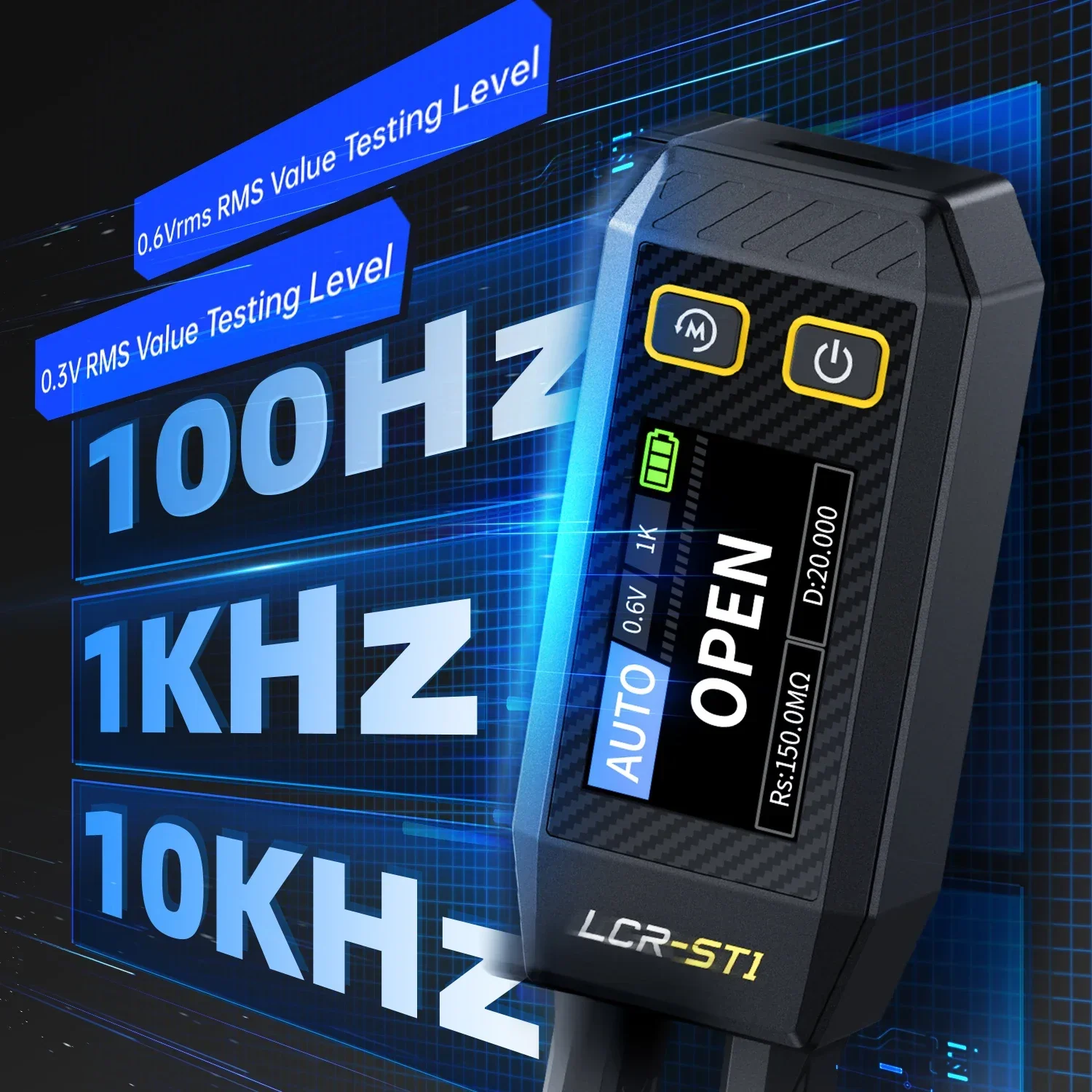

- Frequency Support: Three frequencies: 100Hz, 1kHz, and 10kHz with 0.3V, 0.6V RMS test levels.
- Design: Unique tweezer-shaped design for fine operations in narrow spaces and quick tests of electronic components.
- Portability: Lightweight and portable, perfect for on-site engineers and laboratory use.
- 1.Product Model: LCR-ST1.
- 2.Capacitance range: 1pF-22mF.
- 3.Inductance range: 1μh-10H.
- 4.Resistance range: 10mΩ-10MΩ.
- 5.Diode: On voltage 0.7V.
- 6.Frequency test: 100Hz, 1kHz, 10KHz.
- 7.Level test: 0.3V, 0.6V RMS.
- 8.Parameter display: ESR, D value, Q value, Z value, X value.
- 9.Display: 1.14'' color screen.
- 10.Charging Interface: Type-C, 5V/A.
- 11.Power Supply: 250mAh lithium battery.
- 12.Auto recognition measurement: Support.

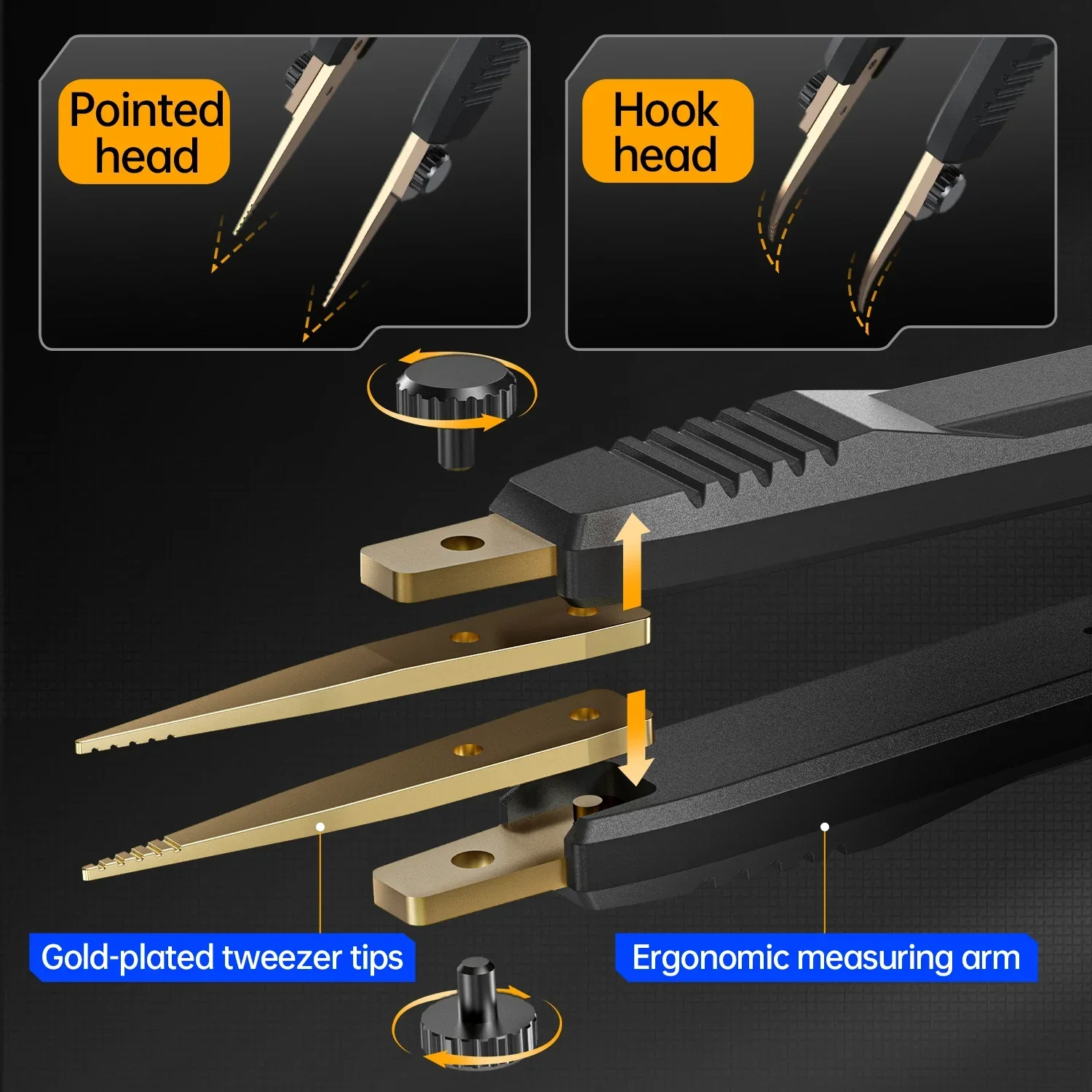

- 13.Replaceable tweezer head: Support.
- 14.Auto shutdown: Support.
- 15.Data hold: Support.

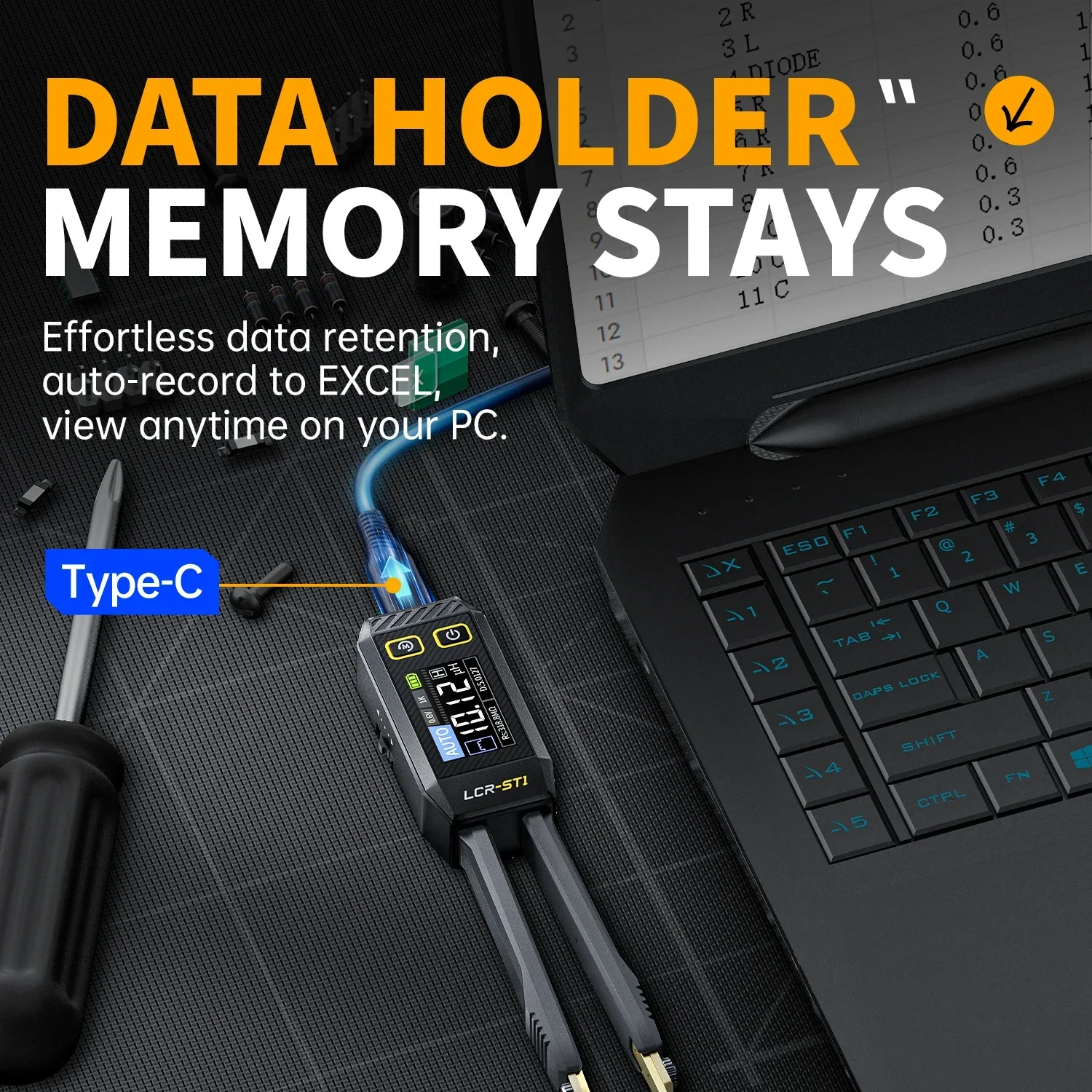

- 16.History record: Connect to PC to view and export.
- 17.Language: Chinese, English.
- 18.Size: 28×19×150mm.
- 19.Weight: 41g.
Why Choose LCR-ST1?
- Whether you're an experienced engineer or a novice, the LCR-ST1 offers accurate and reliable measurement results, enhancing your efficiency and precision in electronic testing. Don't miss out on this indispensable tool that combines functionality and portability!
Original: $36.00
-70%$36.00
$10.80
Description
LCR-ST1 Tweezer-Type LCR Tester
Product Overview:
- The LCR-ST1 is a versatile, portable testing instrument designed for precise automatic measurements of resistance, capacitance, inductance, diodes, and continuity. It features a 1.14-inch color screen display and a magnetic adsorption function for added convenience.
Key Features:
- Advanced Measurement Technology: Ensures high accuracy and stability.
- Display: 1.14-inch color screen.
- Battery: Built-in 250mAh lithium battery for long-lasting usage.
- Frequency Support: Three frequencies: 100Hz, 1kHz, and 10kHz with 0.3V, 0.6V RMS test levels.
- Design: Unique tweezer-shaped design for fine operations in narrow spaces and quick tests of electronic components.
- Portability: Lightweight and portable, perfect for on-site engineers and laboratory use.
- 1.Product Model: LCR-ST1.
- 2.Capacitance range: 1pF-22mF.
- 3.Inductance range: 1μh-10H.
- 4.Resistance range: 10mΩ-10MΩ.
- 5.Diode: On voltage 0.7V.
- 6.Frequency test: 100Hz, 1kHz, 10KHz.
- 7.Level test: 0.3V, 0.6V RMS.
- 8.Parameter display: ESR, D value, Q value, Z value, X value.
- 9.Display: 1.14'' color screen.
- 10.Charging Interface: Type-C, 5V/A.
- 11.Power Supply: 250mAh lithium battery.
- 12.Auto recognition measurement: Support.
- 13.Replaceable tweezer head: Support.
- 14.Auto shutdown: Support.
- 15.Data hold: Support.
- 16.History record: Connect to PC to view and export.
- 17.Language: Chinese, English.
- 18.Size: 28×19×150mm.
- 19.Weight: 41g.
Why Choose LCR-ST1?
- Whether you're an experienced engineer or a novice, the LCR-ST1 offers accurate and reliable measurement results, enhancing your efficiency and precision in electronic testing. Don't miss out on this indispensable tool that combines functionality and portability!
