ANENG MH15 Digital Megohmmeter Insulation Resistance Tester Earth Megometro 6000 Count Multifunctional Ohm Tester High Voltage

ANENG MH15 Digital Megohmmeter Insulation Resistance Tester Earth Megometro 6000 Count Multifunctional Ohm Tester High Voltage

A NENG MH15 Digital Ohmmeter Insulation Resistance 6000 Count Resistor Testers Capacitor Test Megohmmeter High Voltage Tool
General:
This instrument is a battery powered insulation resistance tester that can be used to measure DC voltage, AC voltage, resistance, on-off, diode and insulation resistance. When measuring insulation resistance, there are four test voltages to choose from: 100V, 250V, 500V and 1000V. This instrument has polarity indication, over range indication, data retention, automatic retention and other functions. It is simple to use and is a precision measuring instrument.

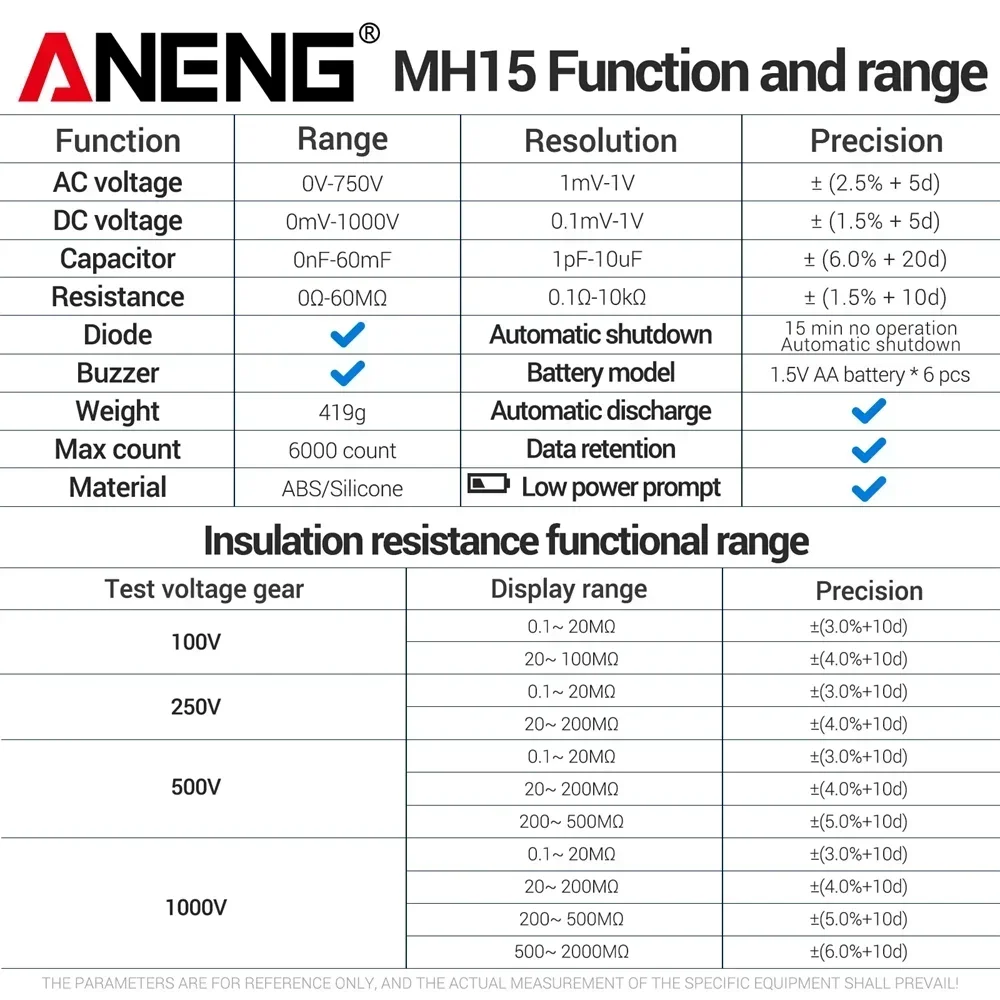

   Insulation resistance functional range


Function

Range

Resolution

Precision

AC voltage

0V-750V

1mV-1V

±(2.5%+5d)

DC voltage

0mV-1000V

0.1mV-1V

±(1.5%+5d)

Capacitor

0nF-60mF

1pF-10uF

±(6.0%+20d)

Resistance

0Ω-60MΩ

0.1Ω -10kΩ

±(1.5%+10d)

Diode

√

Automatic shutdown

15 min no operation Automatic shutdown

Buzzer

√

Battery model

1.5V AA battery*6 pcs (without shipment)

Weight

419g

Automatic discharge

√

Max count

6000 count

Data retention

√

Material

ABS/Silicone

Low power prompt

√


Test voltage gear

Display range

Precision

100V

0.1~20MΩ

±(3.0%+10d)

20~100MΩ

±(4.0%+10d)

250V

0.1~20MΩ

±(3.0%+10d)

20~200MΩ

±(4.0%+10d)

500V

0.1~20MΩ

±(3.0%+10d)

20~200MΩ

±(4.0%+10d)

200~500MΩ

±(5.0%+10d)

1000V

0.1~20MΩ

±(3.0%+10d)

20~200MΩ

±(4.0%+10d)

200~500MΩ

±(5.0%+10d)

500~2000MΩ

±(6.0%+10d)
THE PARAMETERS ARE FOR REFERENCE ONLY,AND THE ACTUAL MEASUREMENT OF THE SPECIFIC EQUIPMENT SHALL PREVAIL

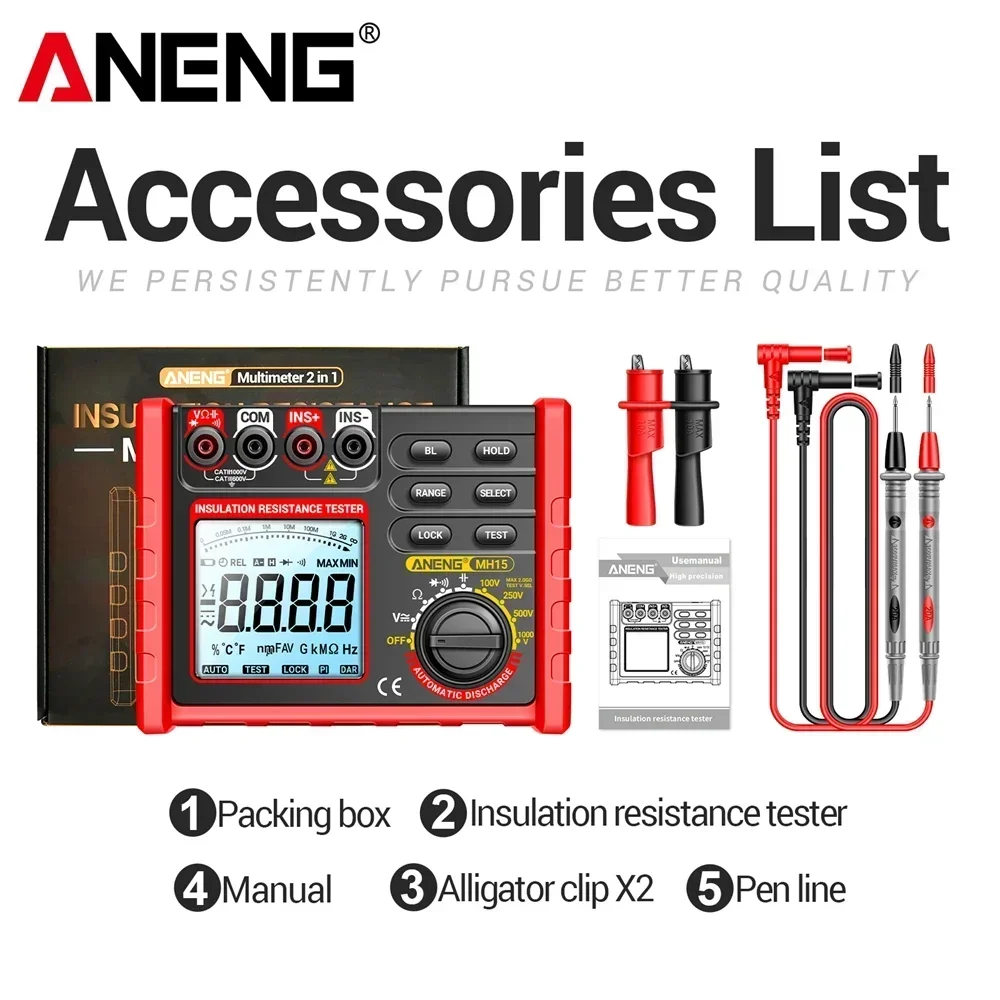

The packaging includes:(Without Battery)
1 * Packaging box
1 * Resistance megohmmeter
1 * Crocodile clip
1 *storage bag
1 * User Manual
1 * Test lead







$59.00
