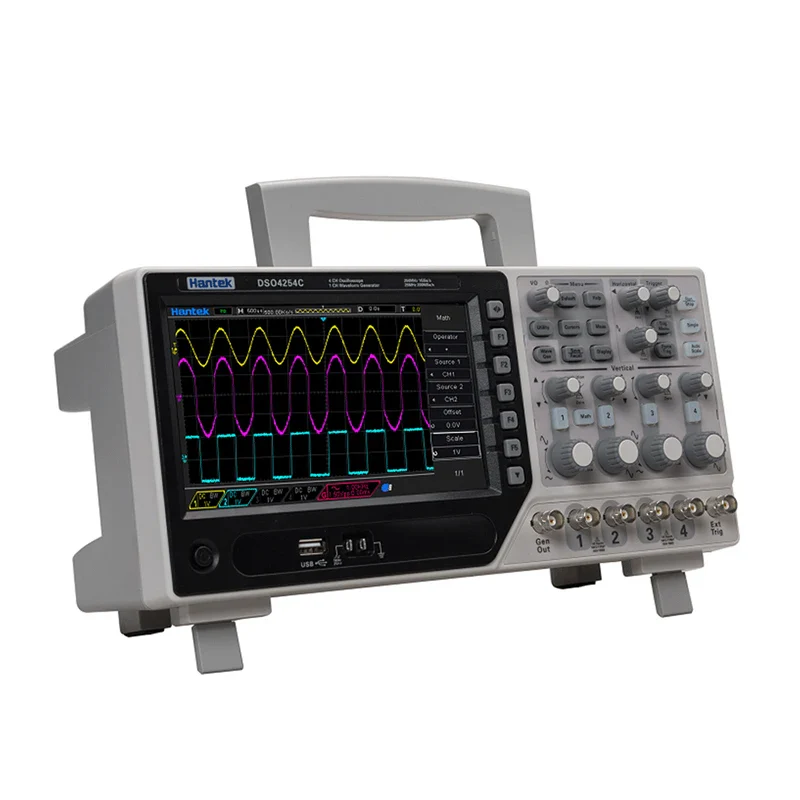

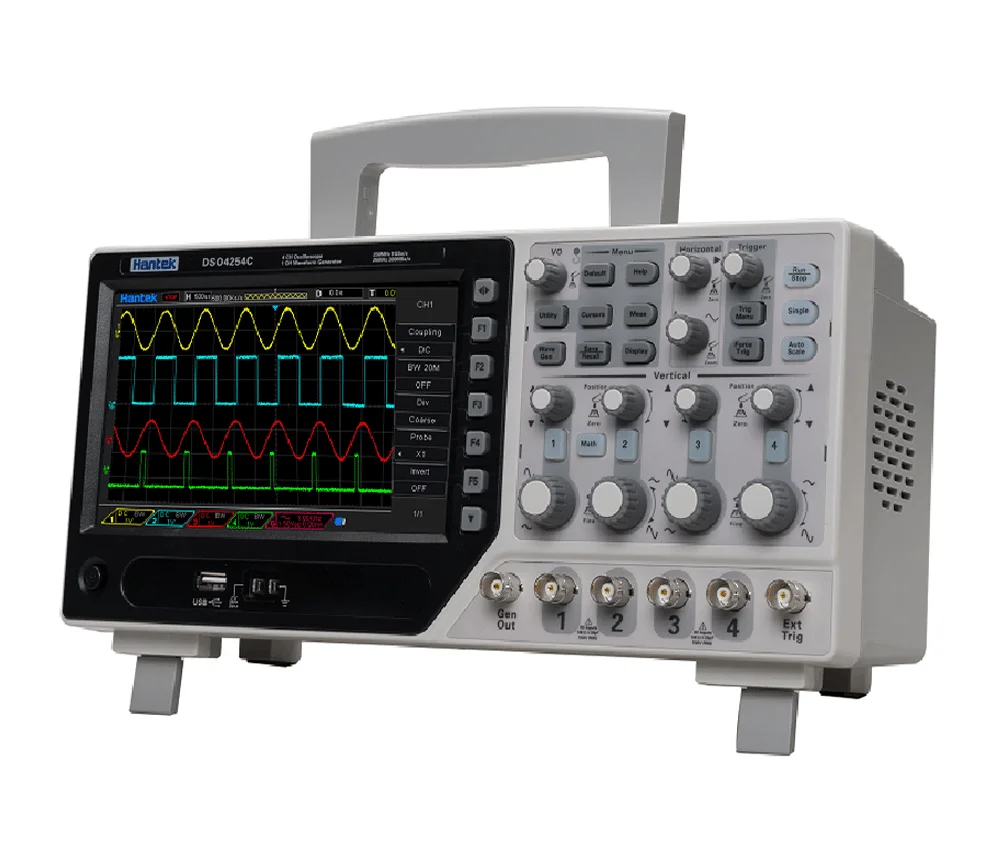

Hantek DSO4254C 4-channel 250MHz Oscilloscope+Arbitrary/Function Signal Generator+External Trigger+DVM+Automatic Range Function
Hantek DSO4254C 4-channel 250MHz Oscilloscope+Arbitrary/Function Signal Generator+External Trigger+DVM+Automatic Range Function
Hantek DSO4254C Digital Oscilloscope 4 Channels 250Mhz PC Portable USB Oscilloscopes +EXT+DVM+Auto range function
DSO4004C Series
4CH oscilloscope, with 1CH Arbitary/function waveform generator, independent keys of oscilloscope and waveform generator which is easy to operate at the same time.. 80-250MHz bandwidth, minimum measurement range 500μV /div，1GS/s sample rate，advanced digital trigger system, high trigger sensitivity, low trigger jitter，high resolution 7 inch 64K color TFT （800*480）
*4CH oscilloscope+EXT+DVM+auto range function
*80-250MHz bandwidth，minimum range 500μV /div，1GS/s sample rate.
*Over 32 types of auto measurement function
*Advanced digital trigger system, high trigger sensitivity.
*Over 14 types of trigger function: edge, overtime, pulse, pattern, interval, etc.
*Function/arbitrary signal generator25MHz,12BitS resolution, 200MHz DDS, ARB/square wave/sine wave/triangular wave/trapezoidal wave/impulse wave/DC etc.,easy to simulate the sensor.
*Integrated USB Host/Device, convenient to communicate with PC. Support U-stick storage/systerm update.
*Support a variety of SCPI remote control command
*Support optional RS232 port, LAN port, HDMI port, touch screen, WIFI communication, SD card storage
*Stable and reliable quality, sturdy and durable.
$175.76
Original: $585.86
-70%Hantek DSO4254C 4-channel 250MHz Oscilloscope+Arbitrary/Function Signal Generator+External Trigger+DVM+Automatic Range Function—
$585.86
$175.76
Description
Hantek DSO4254C Digital Oscilloscope 4 Channels 250Mhz PC Portable USB Oscilloscopes +EXT+DVM+Auto range function
DSO4004C Series
4CH oscilloscope, with 1CH Arbitary/function waveform generator, independent keys of oscilloscope and waveform generator which is easy to operate at the same time.. 80-250MHz bandwidth, minimum measurement range 500μV /div，1GS/s sample rate，advanced digital trigger system, high trigger sensitivity, low trigger jitter，high resolution 7 inch 64K color TFT （800*480）
*4CH oscilloscope+EXT+DVM+auto range function
*80-250MHz bandwidth，minimum range 500μV /div，1GS/s sample rate.
*Over 32 types of auto measurement function
*Advanced digital trigger system, high trigger sensitivity.
*Over 14 types of trigger function: edge, overtime, pulse, pattern, interval, etc.
*Function/arbitrary signal generator25MHz,12BitS resolution, 200MHz DDS, ARB/square wave/sine wave/triangular wave/trapezoidal wave/impulse wave/DC etc.,easy to simulate the sensor.
*Integrated USB Host/Device, convenient to communicate with PC. Support U-stick storage/systerm update.
*Support a variety of SCPI remote control command
*Support optional RS232 port, LAN port, HDMI port, touch screen, WIFI communication, SD card storage
*Stable and reliable quality, sturdy and durable.
