Hantek 4 Digital 1CH Lab DC Power Supply 35V/6A Adjustable Voltage Regulator Stabilizer Switching Programmable HDP1000 Series

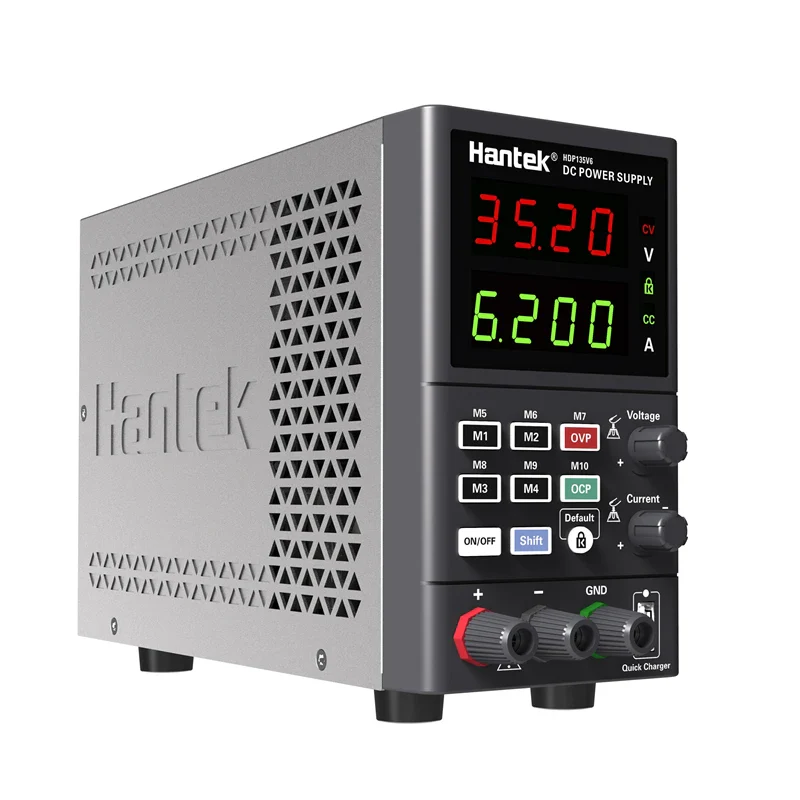

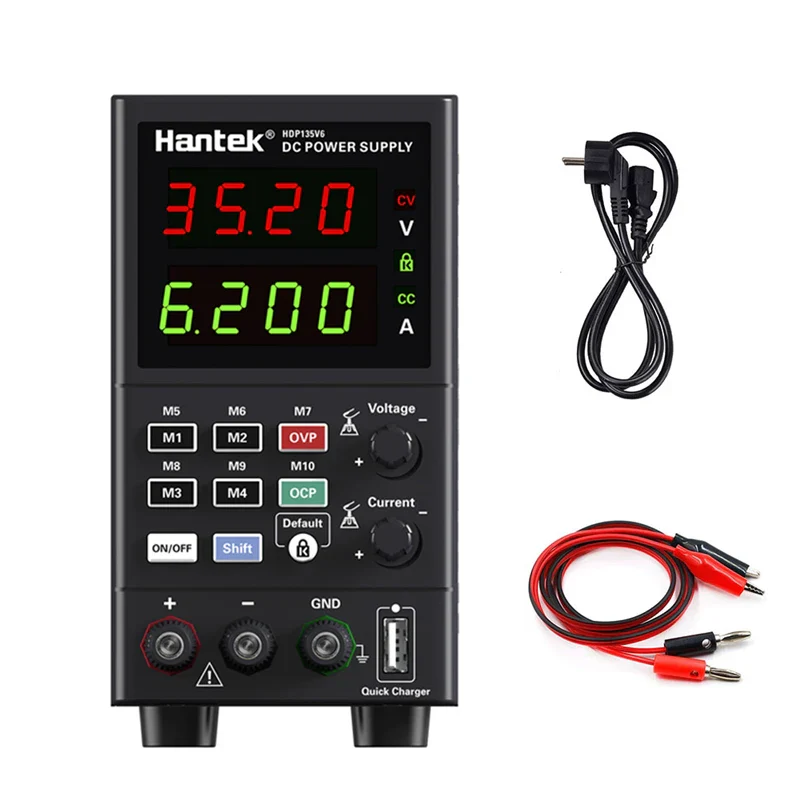

HDP1000 Series Programmable DC Power Supply
1.4 digit display voltage and current, resolution up to 10mV/1mA;
2.Standard USB quick charging function, 5-12V output, supporting a variety of quick charging protocols;

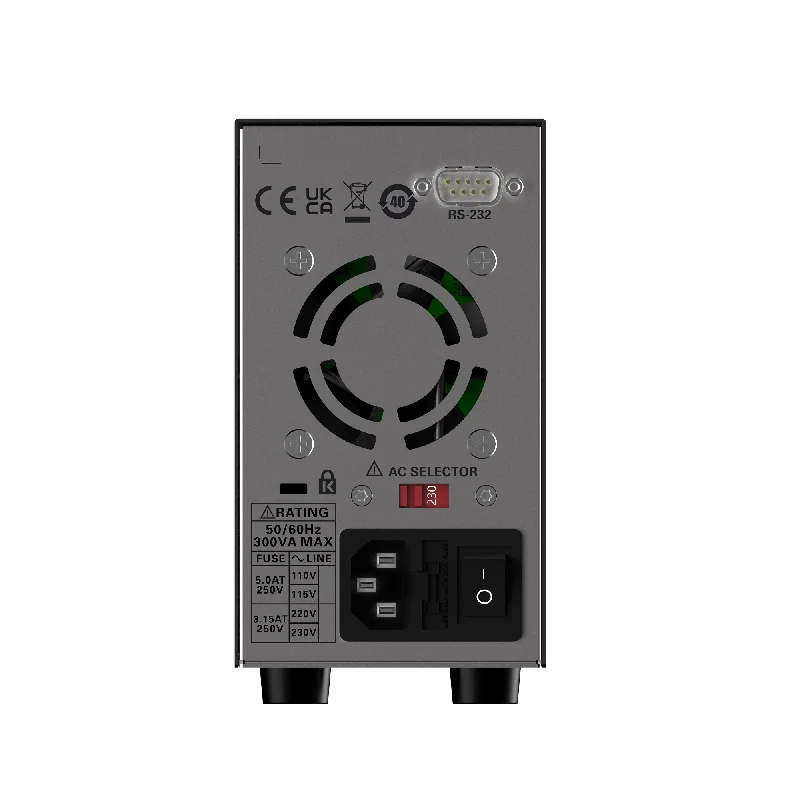

3.10 groups of data storage/retrieval functions;AC input voltage 230/115V switch, universal;

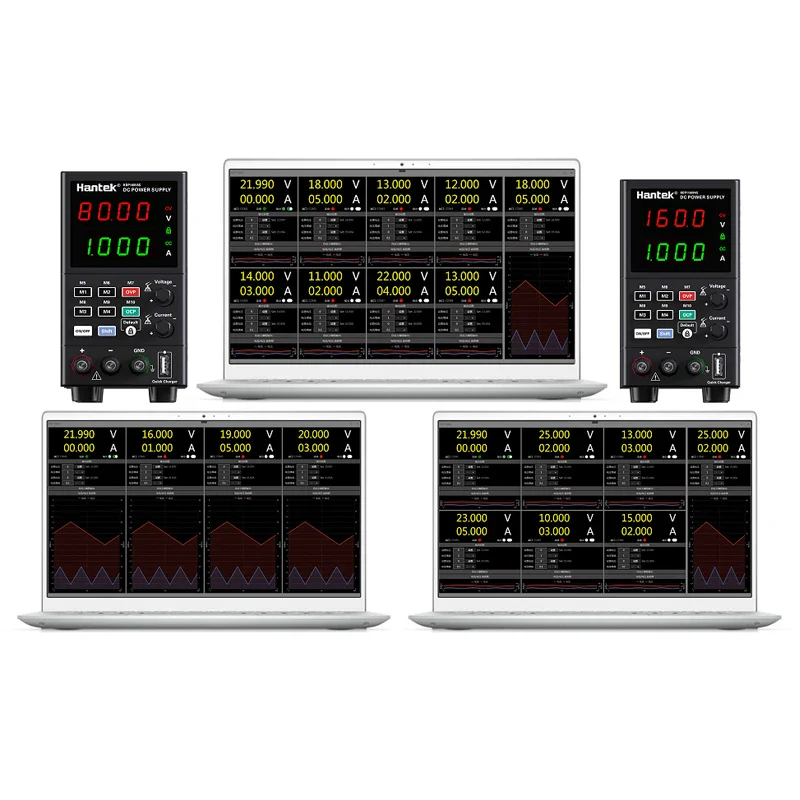

4.Fully isolated serial port, software support multiple power supply control, easy to set up measurement and control or aging system;Over voltage, over current, overload, overheating, short circuit protection functions;
5.Low noise temperature control fan, quiet and durable;35V/6A output is stable and pure;
6.On/Off output control, one-key panel lock function to prevent misoperation;
7.Constant voltage (CV)/ constant current (CC) mode automatic switch, effectively protect the circuit;
8.Two-stage adjustment topology, no impact on the load when the power is turned on;
9.Ultra-thin body, light and easy to carry, excellent indicators, excellent quality, stable performance, strong durability.
|

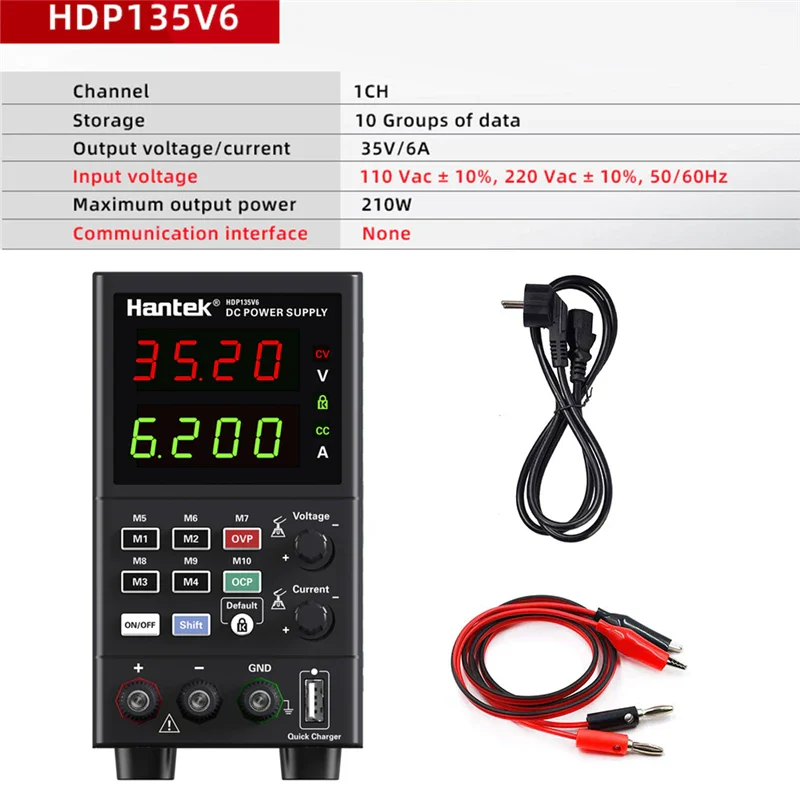

Model |
HDP135V6 |
HDP135V6S |
HDP135V6A |
HDP135V6B |
|
Channel |
1CH |
|||
|
Storage |
10 Groups of data |
|||
|
Output voltage/current |
35V/6A |
|||
|
Input voltage |
110 Vac ± 10%, 220 Vac ± 10%, 50/60Hz |
220 Vac ± 10%, 50/60Hz |
110 Vac ± 10%, 50/60Hz |
|
|
Maximum output power |
210W |
|||
|
Communication interface |
None |
RS232 |
None |
None |
|
Voltage |
||||
|
Load regulation |
≤0.1% + 5 mv |
|||
|
Linear regulation |
≤0.01% + 5 mv |
|||
|
Set resolution |
10mV |
|||
|
Set precision |
≤0.1% + 1 digits |
|||
|
Read back resolution |
10mV |
|||
|
Read back accuracy |
≤0.1% + 1 digits |
|||
|
Ripple |
10mVrms |
|||
|
Current |
||||
|
Load regulation |
≤0.2% + 3mA |
|||
|
Linear regulation |
≤0.2% + 3mA |
|||
|
Set resolution |
1mA |
|||
|
Set precision |
≤0.2% + 3mA |
|||
|
Read back resolution |
1mA |
|||
|
Read back accuracy |
≤0.2% + 3 digits |
|||
|
Ripple |
5mArms |
|||
|
Overvoltage protection (OVP) |
0 ~ 35V ± 0.2%FS |
|||
|
Maximum voltage |
35V ± 0.2% |
|||
|
Overcurrent protection (OCP) |
0 ~ 6A ± 0.2%FS |
|||
|
Maximum current |
6A ± 0.2% |
|||
|
Quick charge |
||||
|
Output voltage range |
5V~12V |
|||
|
Output power |
Maximum: 18 w |
|||
|
Supported fast charging protocol |
DCP (Apple, Samsung and BC1.2), Qualcomm QC2.0/QC3.0, Huawei Quick Charge Protocol FCP, Samsung Quick Charge Protocol AFC |
|||
|
General features |
||||
|
Working conditions |
Temperature -10 ° C to 40 ° C, relative humidity ≤80% |
|||
|
Storage conditions |
Temperature -20 ° C to 60 ° C, relative humidity ≤80% |
|||
|
Cooling |
Air cooling |
|||
