Features:

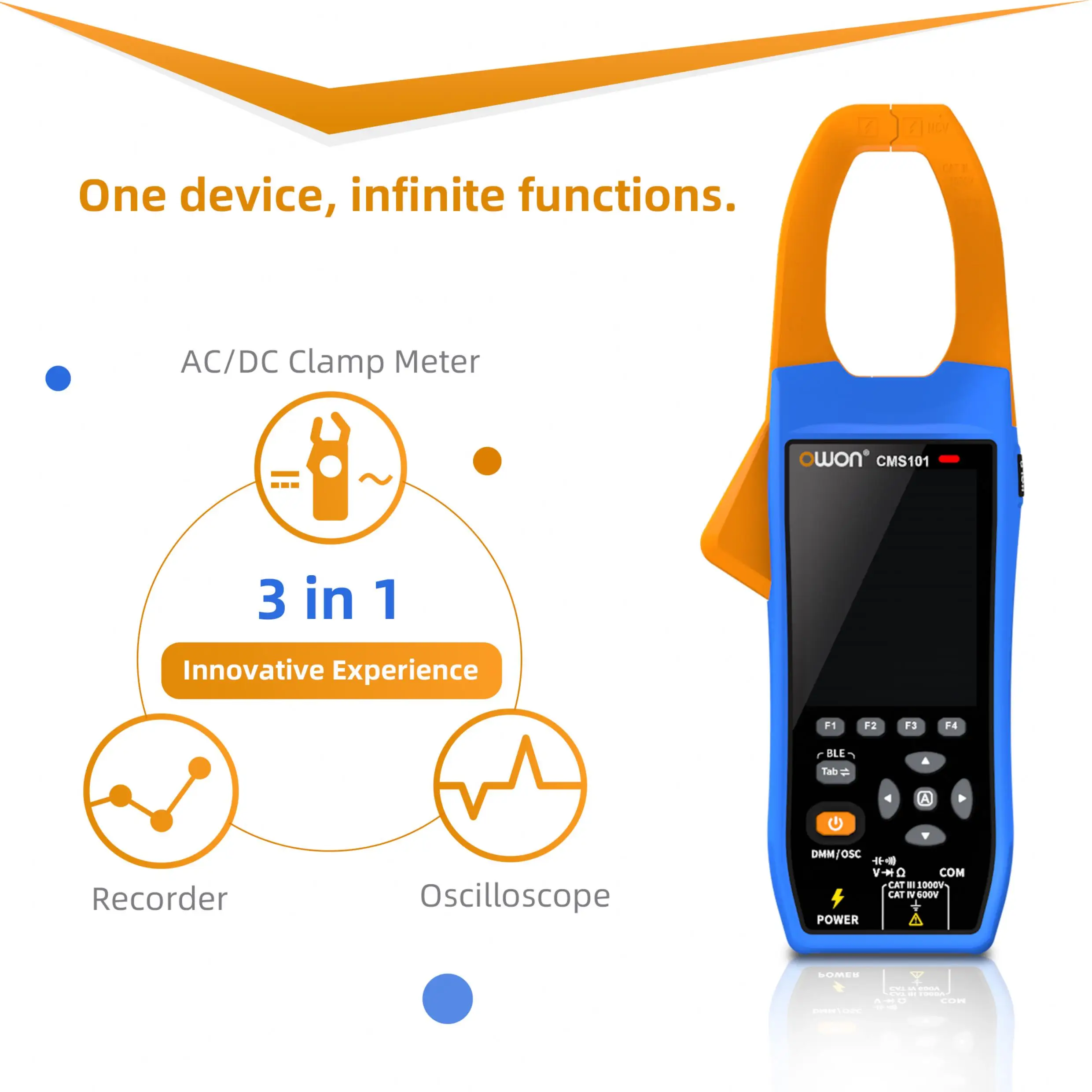

- Multi-functional Usage: Combines multimeter, oscilloscope, and current recorder functions to suit various measurement needs.
- High Accuracy: Ensures precise reading with high accuracy across voltage, current, resistance, and frequency measurements.

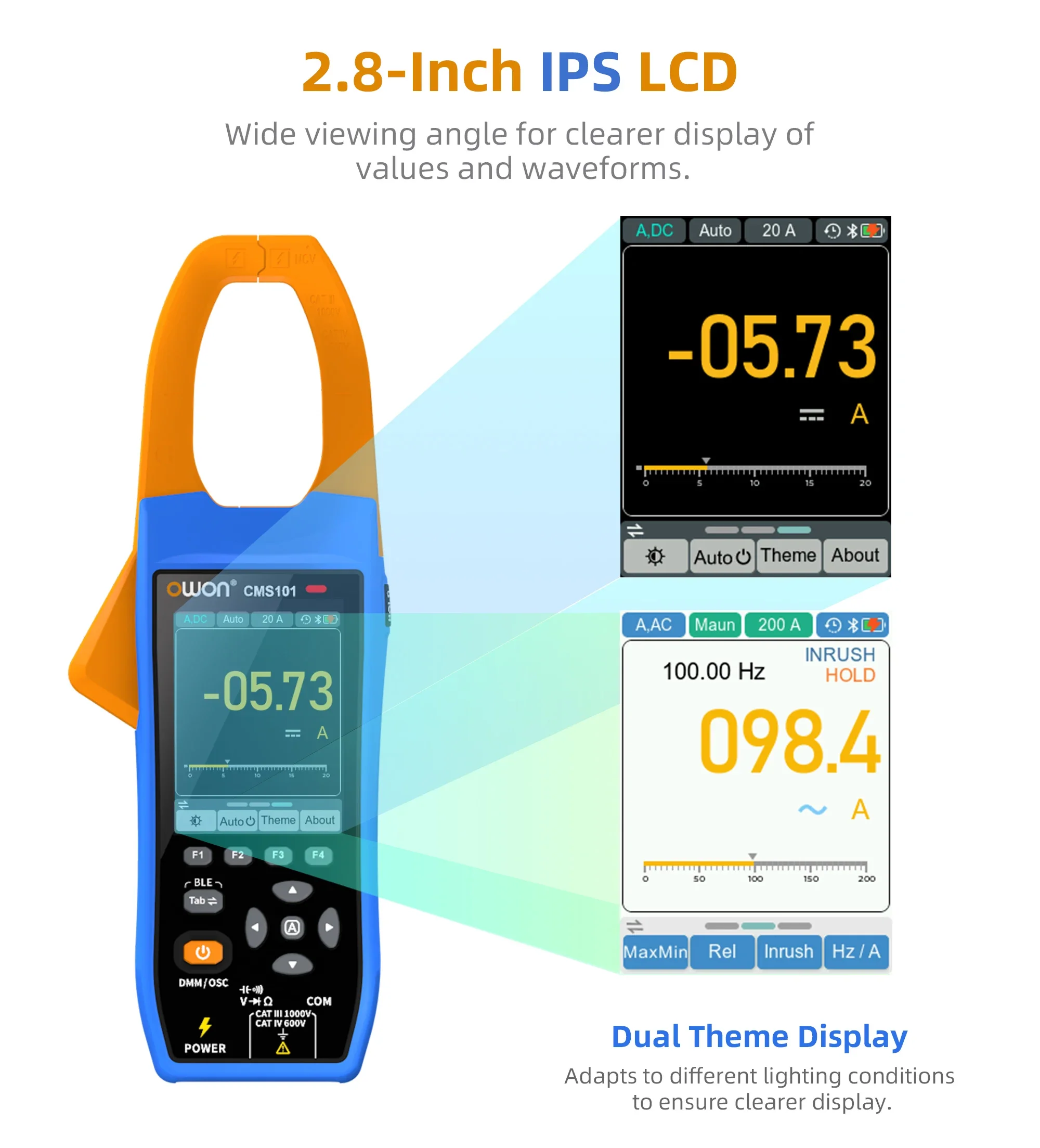

- Easy-to-Read Display: Features a large, clear screen for easy viewing of measurement results and waveforms.
- Robust Input Protection: Equipped with comprehensive input protection to protect the device and the user.
- User-Friendly Interface: Intuitive design with simple button layout for convenient operation and quick access to functions.

Specifications:
- Brand: OWON
- Model: CMS101
- Multimeter Specification
- DC Voltage (V):200.00mV, ±(0.1%+6d)2.0000V/20.000V/200.00V/1000.0V, ±(0.1%+5d)/±(0.15%+5d)
- AC Voltage (V):200.00mV/2.0000V/20.000V/200.00V, ±(0.6%+10d)
1000.0V, ±(0.8%+10d)
- DC Current (A):20.00A, ±(2.0%+10d)
200.0A/1000A, ±(2.0%+5d)
- AC Current (A):20.00A, ±(3.0%+10d)
200.0A/1000A, ±(2.5%+5d)
- Resistance (Ω):2.0000kΩ/20.000kΩ/200.00kΩ/2.0000MΩ, ±(0.3%+5d)20.000MΩ, ±(0.5%+5d)
- Capacitance (F):
2.00nF/20.0nF/200nF/2.00µF/20.0µF/200µF/2.00mF/20.0mF, ±(3.0%+10d)
Frequency (Hz):
200.0Hz/2.0000kHz/20.000kHz/200.000kHz/2.0000MHz/20.00Mhz, ±(0.1%+5d)
- Duty Cycle:0.1%-99.9% (Typical: Vrms=1V, f=100Hz), ±(1.2%+3d)
0.1%-99.9% (<1kHz), ±(2.5%+10d)

Oscilloscope Specification
- Analog Bandwidth: 1kHz
- Sample Mode: Real-time sample
- Real-time Sampling Rate: 5.0MSa/S
- Channel: 1
- Input Impedance: 10MΩ
- Maximum Input Voltage: 1000V
- Maximum Sample Current: 1000A
- Scan Speed: 2.5us/div to 10s/div
- Time Base Accuracy: ±(0.01%+0.1div)
- Sensitivity: 30mV/div to 500V/div
- Displacement Range: ±3 grid
- Sensitivity Accuracy: ±(5%+0.2div)
- Measurement Value: Rms, Period, Freq, Max, Min, PK-PK
- Trigger Mode: Auto
- Trigger Type: Rise, Fall

Package Included:
- 1 x AC/DC Clamp Meter
- 1 x User Manual
- 1 x Test Lead Set
- 2 x AAA Batteries
- 1 x Carrying Case
