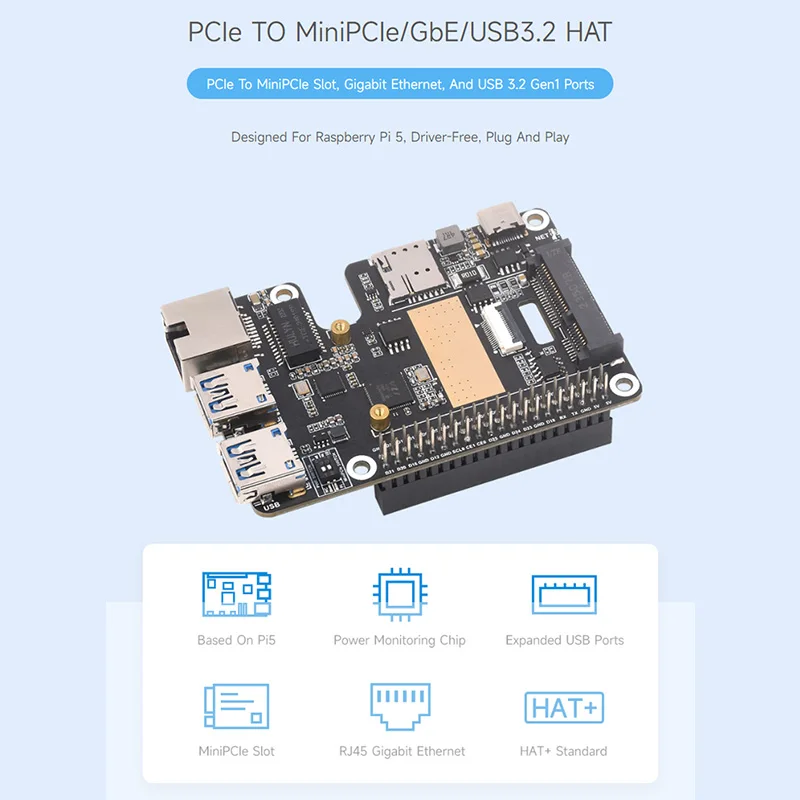

PCIe to MiniPCIe / Gigabit Ethernet / USB 3.2 Gen1 HAT for Raspberry Pi 5 Extend 2-Ch USB 3.2 Gen1 1x Gigabit Ethernet Ports
PCIe to MiniPCIe / Gigabit Ethernet / USB 3.2 Gen1 HAT for Raspberry Pi 5 Extend 2-Ch USB 3.2 Gen1 1x Gigabit Ethernet Ports
Onboard MiniPCIe slot, Compatible with SIM7600G-H-PCIE / EG25-G mPCIe series 4G modules
|
4G module |
SIM7600G-H-PCIE |
EG25-G mPCIe |
|
|
 |
 |
|
Frequency band |
||
|
LTE-FDD |
B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66 |
B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28 |
|
LTE-TDD |
B34, B38, B39, B40, B41 |
B38, B39, B40, B41 |
|
WCDMA |
B1, B2, B4, B5, B6, B8, B19 |
|
|
GSM |
850, 900, 1800, 1900 MHz |
|
|
GNSS |
GPS, Beidou, GLONASS, GALILEO, QZSS |
|
|
Data Transfer |
||
|
LTE-FDD |
150 Mbps (DL) / 50 Mbps (UL) |
|
|
LTE-TDD |
130 Mbps(DL) / 35 Mbps(UL) |
130 Mbps(DL) / 30 Mbps(UL) |
|
HSPA+ |
42 Mbps (DL) / 5.76 Mbps (UL) |
|
|
WCDMA |
384 Kbps (DL) / 384 Kbps (UL) |
|
|
EDGE |
236.8 Kbps (DL) / 236.8 Kbps (UL) |
296 Kbps (DL) / 236.8 Kbps (UL) |
|
GPRS |
85.6 Kbps (DL) / 85.6 Kbps (UL) |
107 Kbps (DL) / 85.6 Kbps (UL) |
|
Software Features |
||
|
Operating system |
Windows / Linux / Android |
|
|
Communication protocols |
TCP, IP, IPV4, IPV6, Multi-PDP, FTP, FTPS, HTTP, HTTPS, DNS |
TCP, UDP, PPP, FTP, HTTP, NTP, PING, QMI, NITZ, SMTP, MQTT, CMUX, HTTPS, FTPS, SMTPS, SSL, MMS, FILE |
|
SMS |
Supports MT, MO, CB, Text, PDU |
|
|
Firmware upgrade |
USB/FOTA |
USB/DFOTA |
|
Hardware Specifications |
||
|
SIM card |
1.8V / 3.0V |
|
|
Antenna interface |
IPEX-1 connector (LTE main antenna + LTE diversity antenna + GNSS antenna) |
|
|
Power supply |
3V ~ 3.6V |
|
|
Form factor |
Mini-PCIe |
|
|

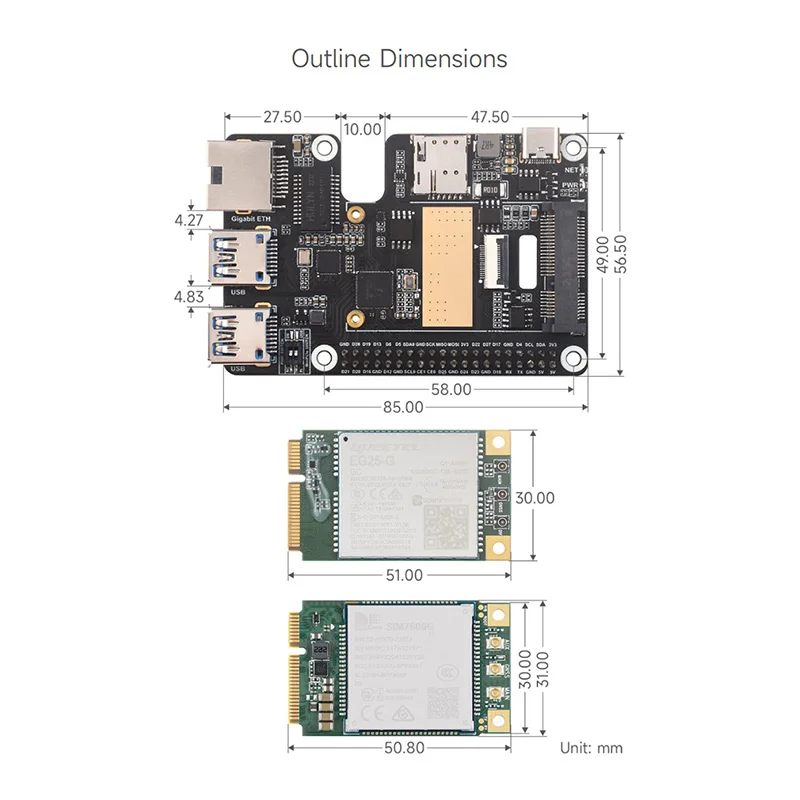

Dimensions |
50.8 × 31.0 × 5.5 mm |
51.0 × 30.0 × 4.9 mm |
|
Operating temperature |
-40℃ ~ +80℃ |
|
|
Applications |
||
|
Applicable regions |
global coverage |
|
|

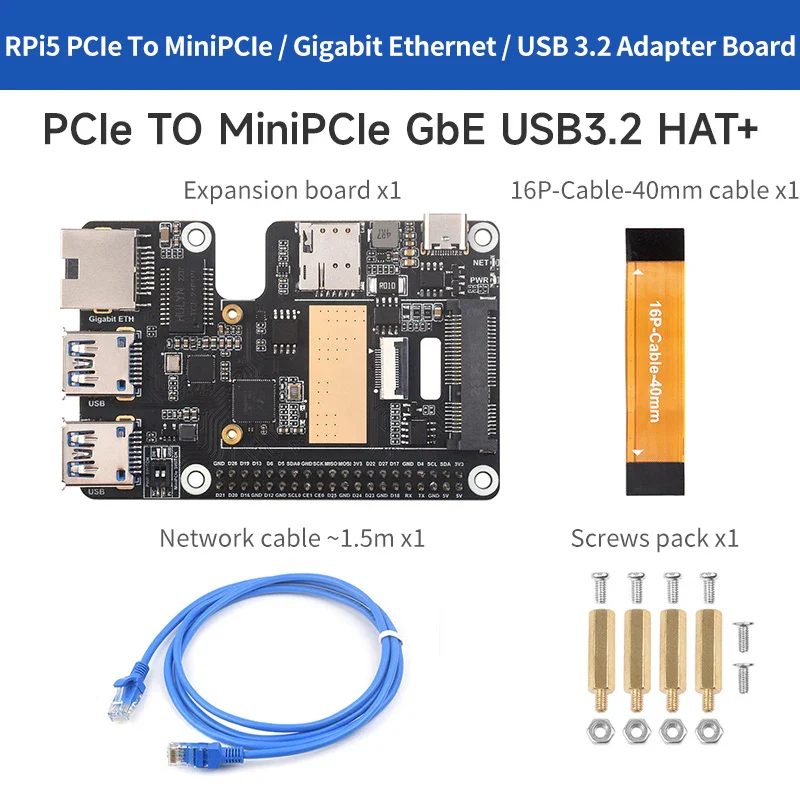

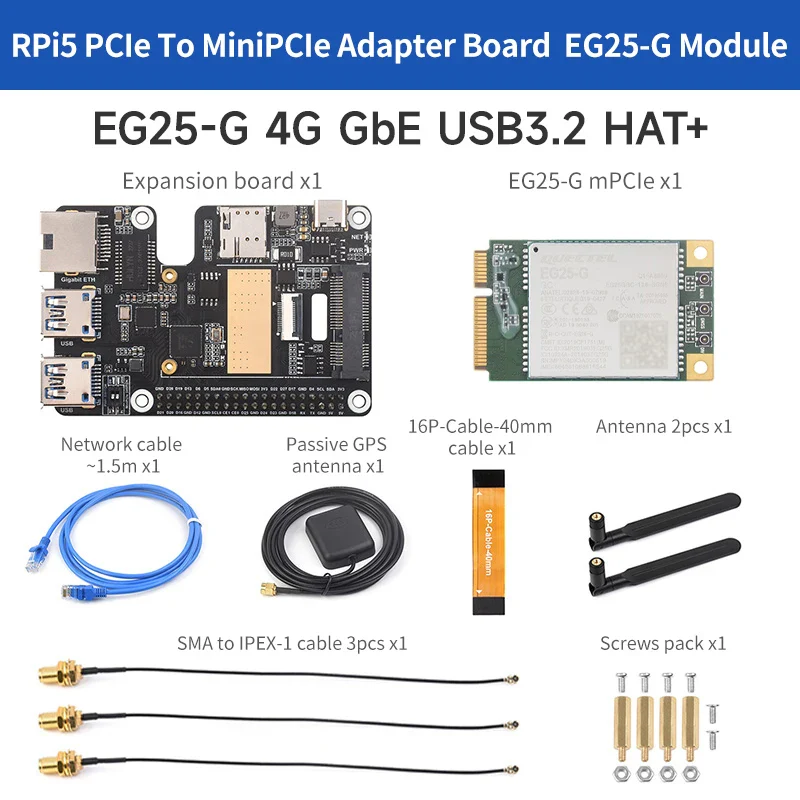

Note: The 4G module is optional, please refer to the Package Content for detailed part list. The above are the supported modules after testing; If you need to use with other modules, please confirm the interface compatibility of your module. |
||
Real-time monitoring of power status, supports USB port power control via software
-
RTL8153B
USB to Gigabit ETH -
VL805
PCIe to USB 3.2 Gen1 HUB chip -
INA219
Power monitoring chip -
EEPROM
for saving HAT ID and product information -
Raspberry Pi GPIO header
for connecting Raspberry Pi 5 -
MiniPCIe slot
for connecting the 4G module with MIniPCIe interface -
16PIN PCIe interface

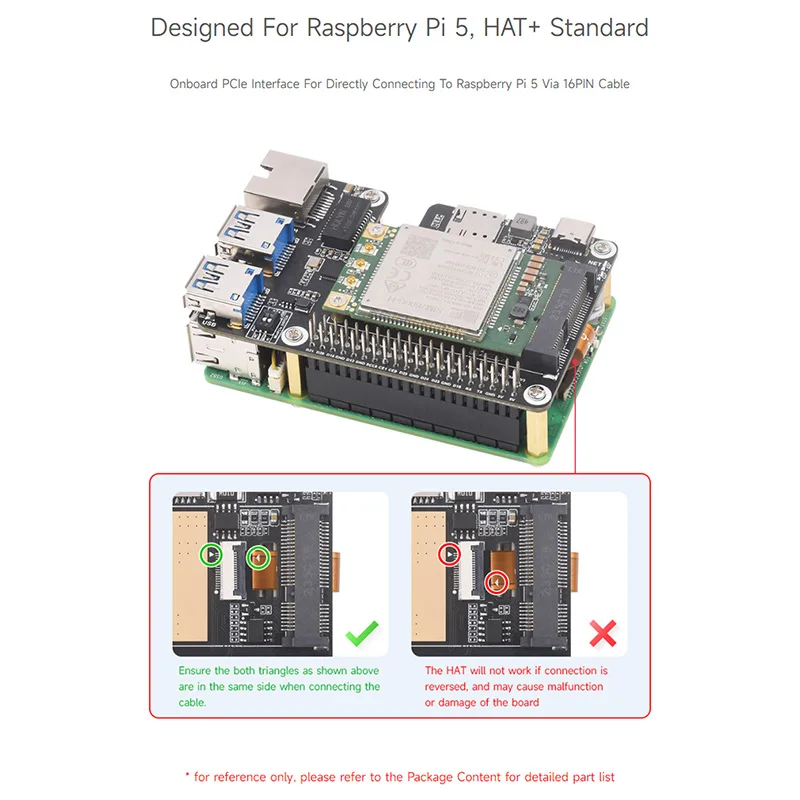

for connecting to the PCIe interface of Raspberry Pi 5
8 .Type-C interface
for 4G networking of Raspberry Pi or PC via USB cable, firmware updating, or external power supply input
9. Nano SIM card slot
for installing Nano-SIM card

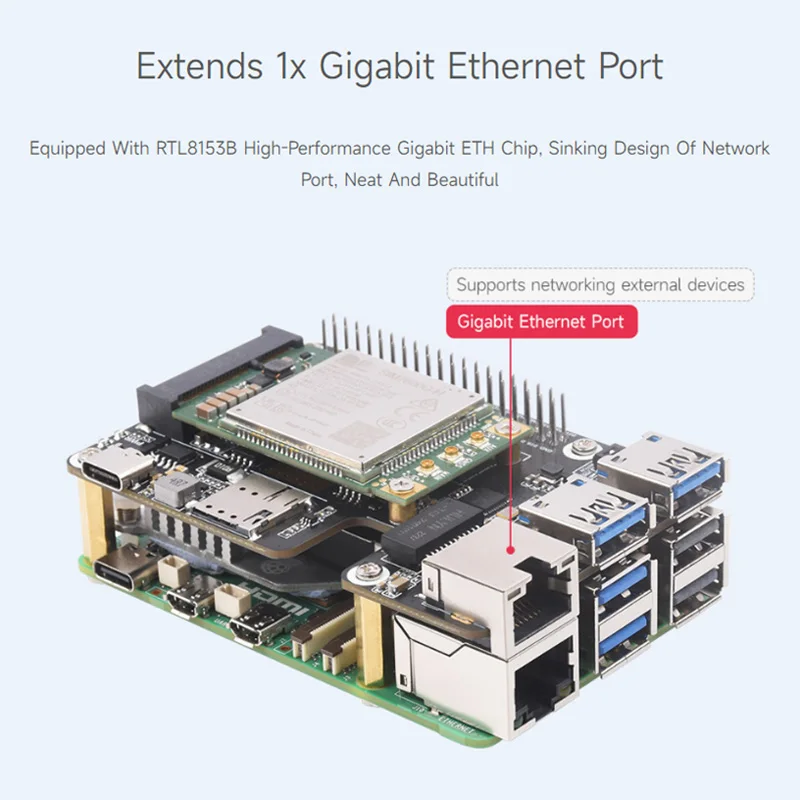

10. Gigabit Ethernet port
up to 1000Mbps data rate, compatible with 100Mbps

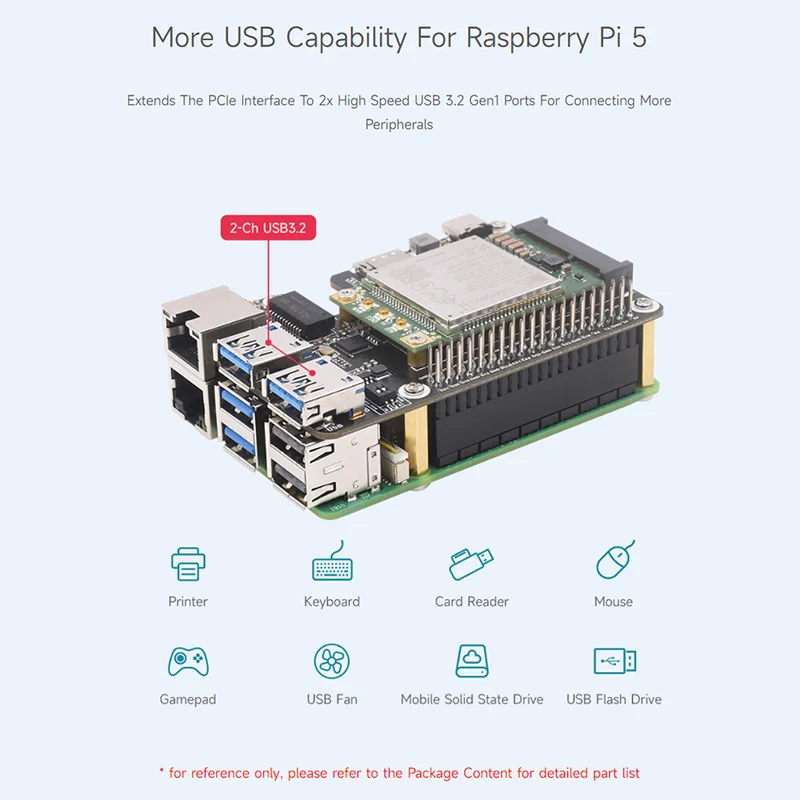

11. USB 3.2 Gen1 expanded ports
USB1~USB2
12. DIP switchs
for switching to use GPIO D6 pin to control power ON/OFF of the module and switching the module USB signal output direction
13. NET indicator
Module Network status indicator
14. PWR indicator
Power indicator
