SI5351 WSPR Transmitter With TCXO And GPS Automatic QTH Positioning 23dBm For Tests Measurement Tools Accessory USB-5V



Features:

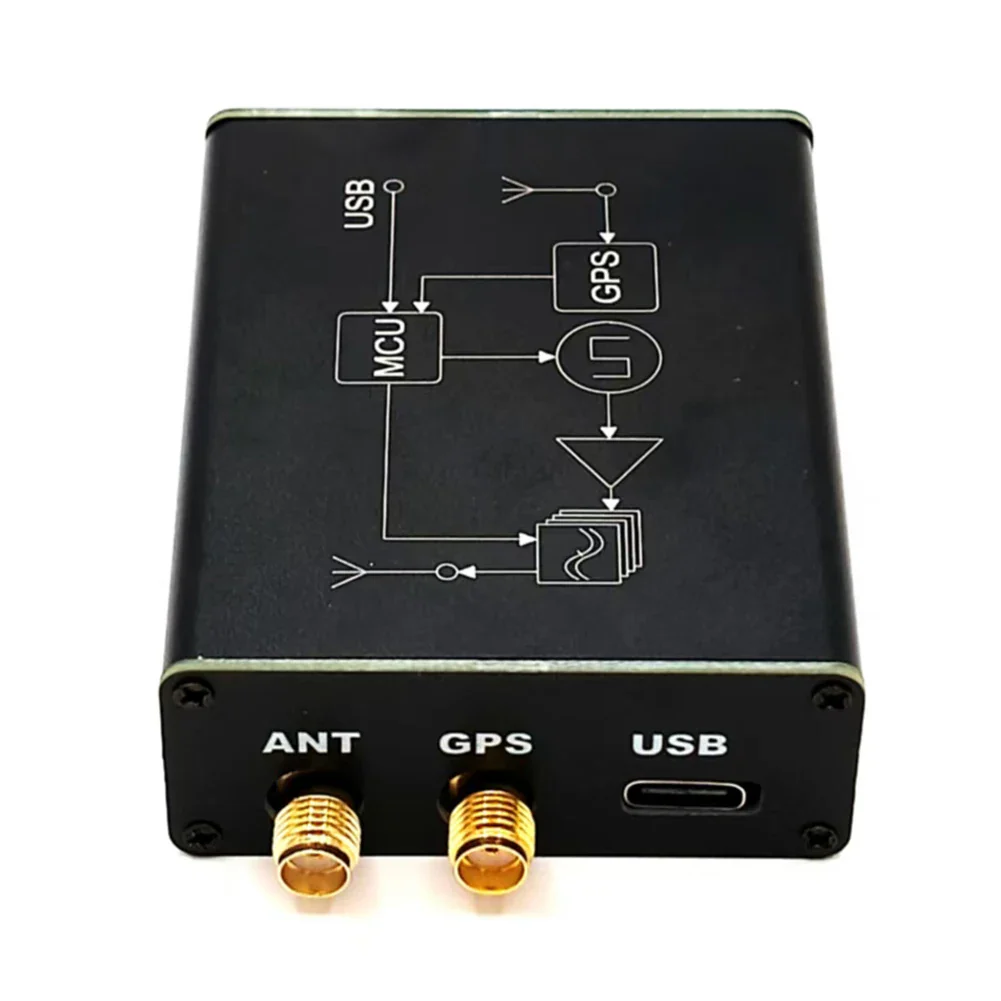

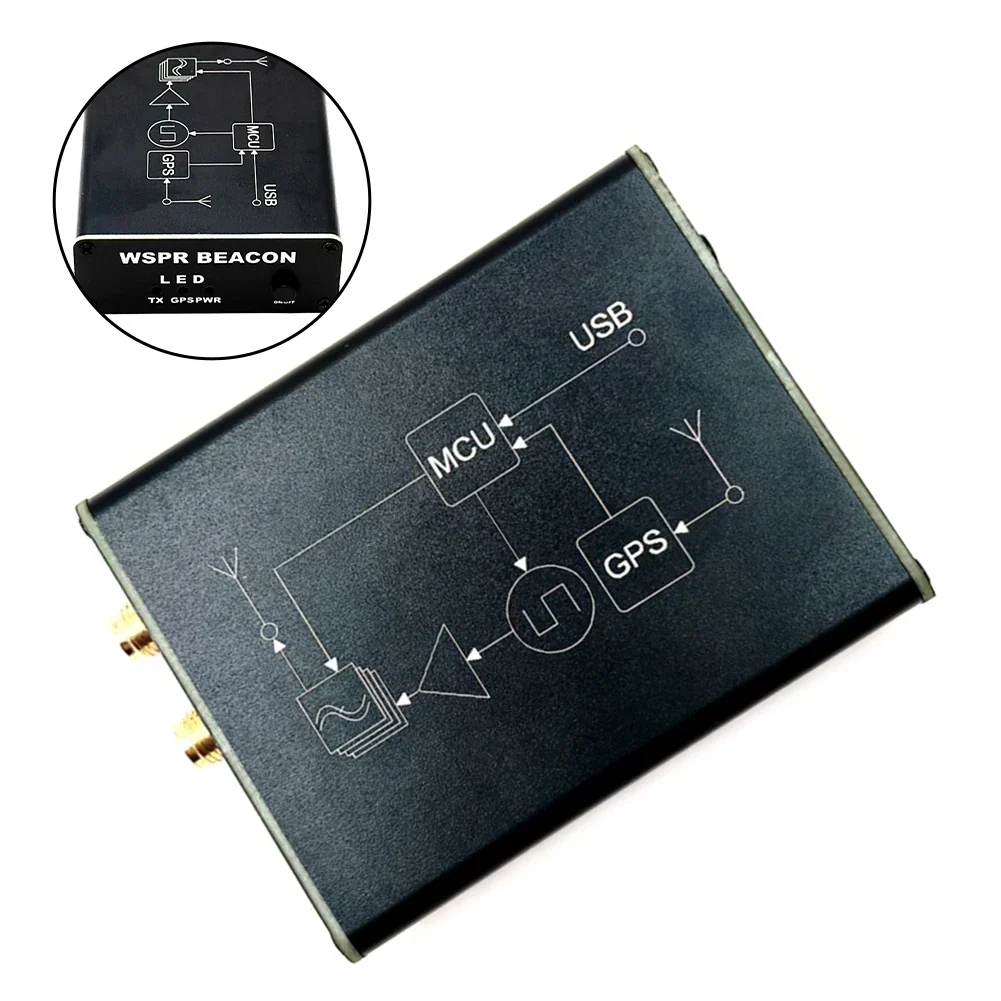

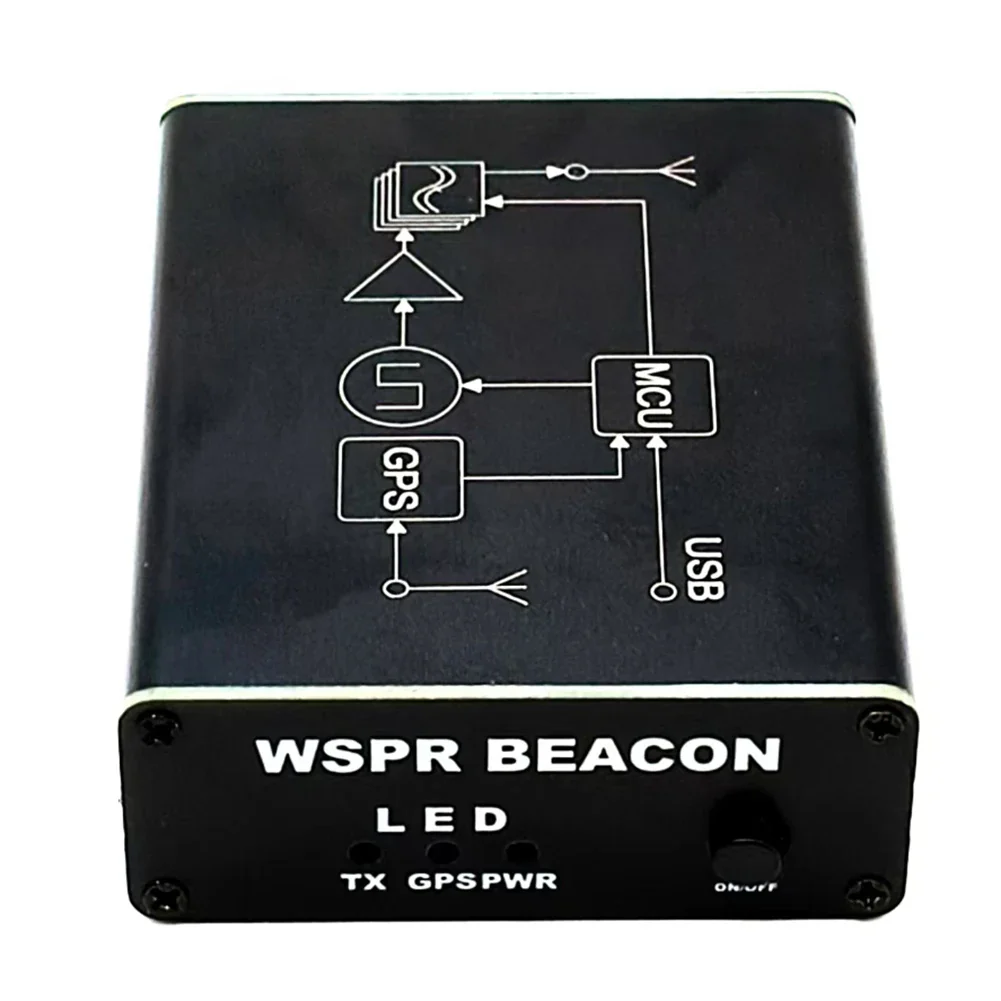

A small WSPR message transmission hardware device based on the SI5351 chip.

This device incorporates a TCXO to eliminate frequency drift of the SI5351 and a built-in GPS module for use with an active GPS antenna.

It features transmission time synchronization and automatic QTH positioning calculation, and employs a buffer based on the 74ACT244 chip.

After configuring the call sign, grid (GPS is used by default), and frequency through the serial port, it can be used without the need for external software or code.



Specifications:

 Part Name: SI5351 WSPR Transmitter

Material: ABS

Color: As shown

size: 50*20*63mm (excluding connector)

RF Connector: for SMA

Feeder: 50Ω coaxial cable

GPS Antenna Type: Active, External

Maximum Output Power: ~23dBm

Power Supply: USB-5V

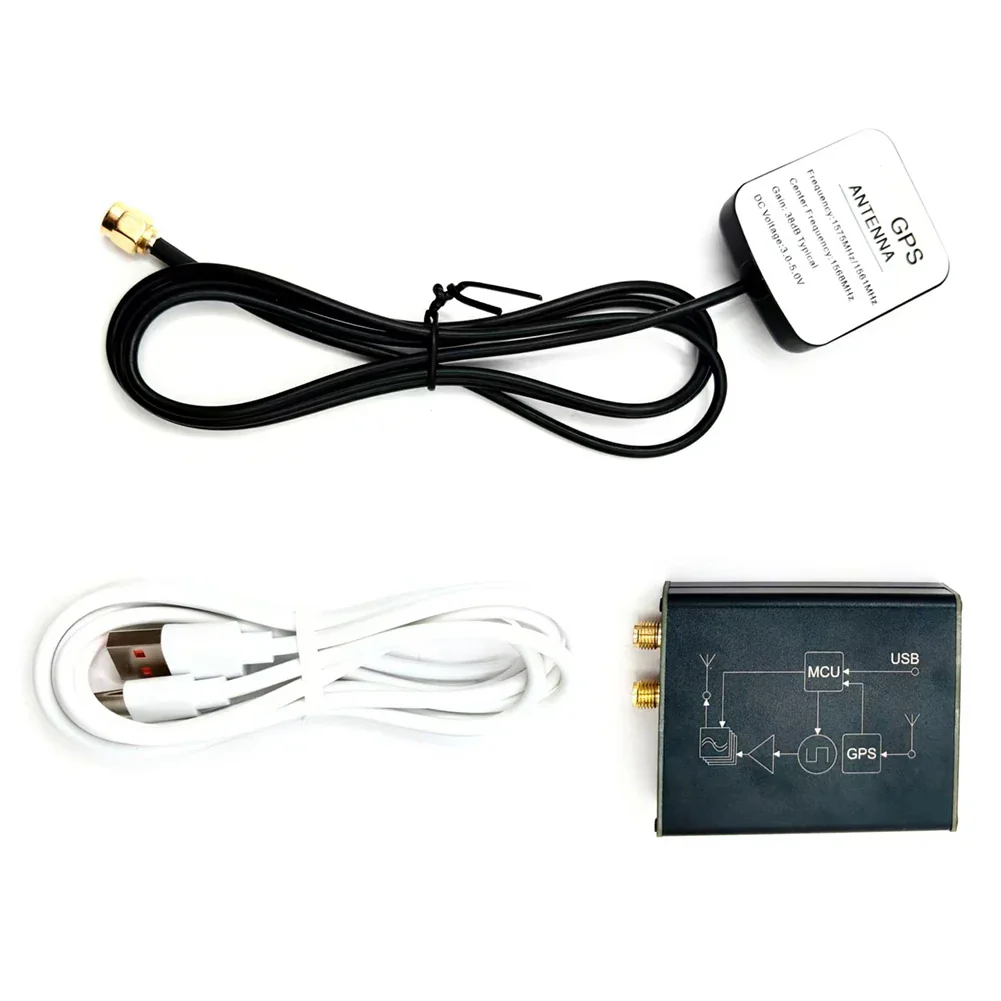

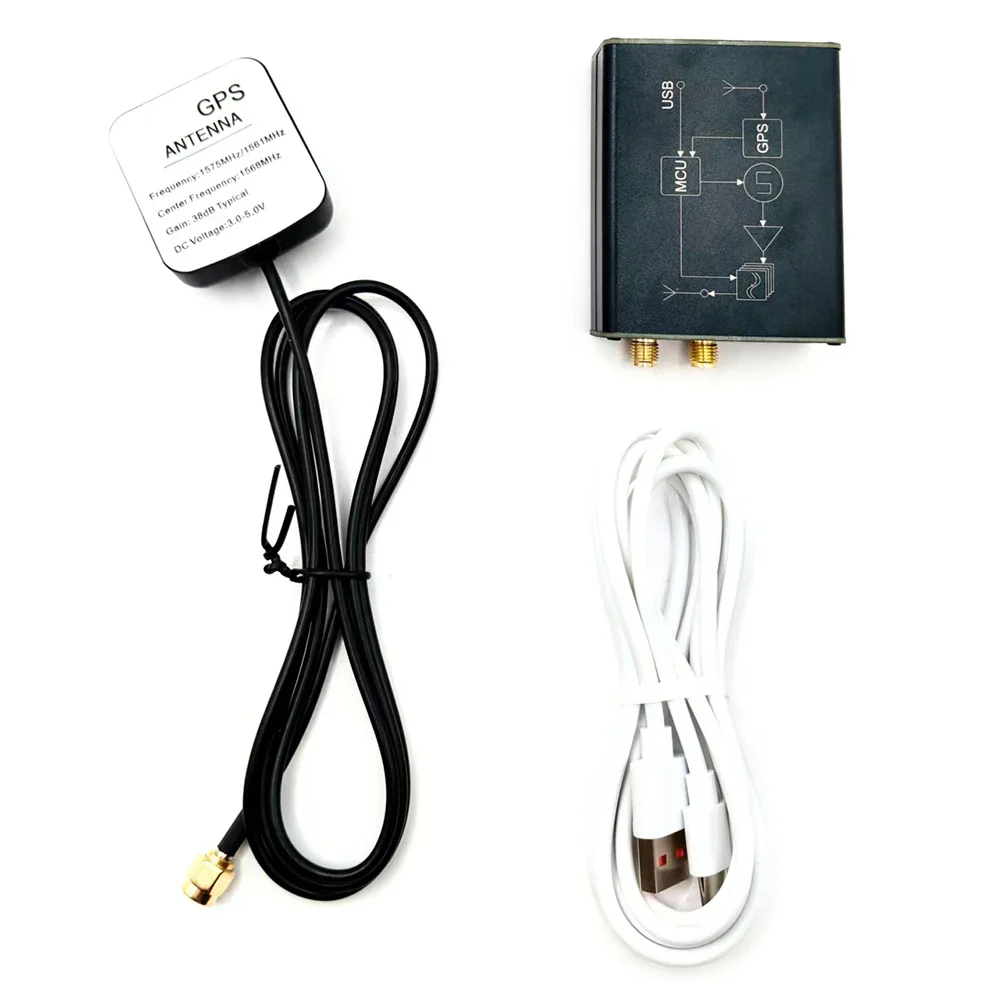

Package Contents:

1 x Device

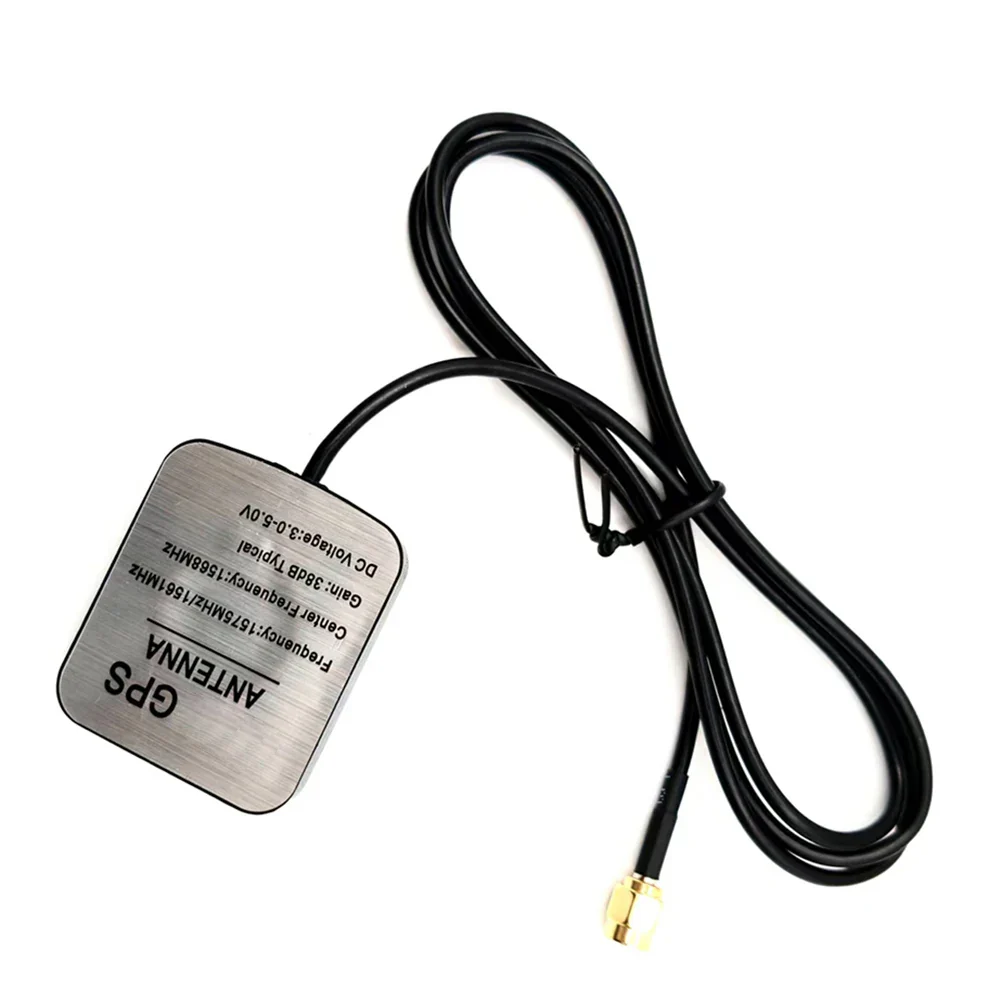

1 x GPS Antenna

1 x Type-C Cable



Note:

It can be used immediately after configuring the call sign, grid (GPS is used by default) and frequency via serial port; no external software or code is required.
