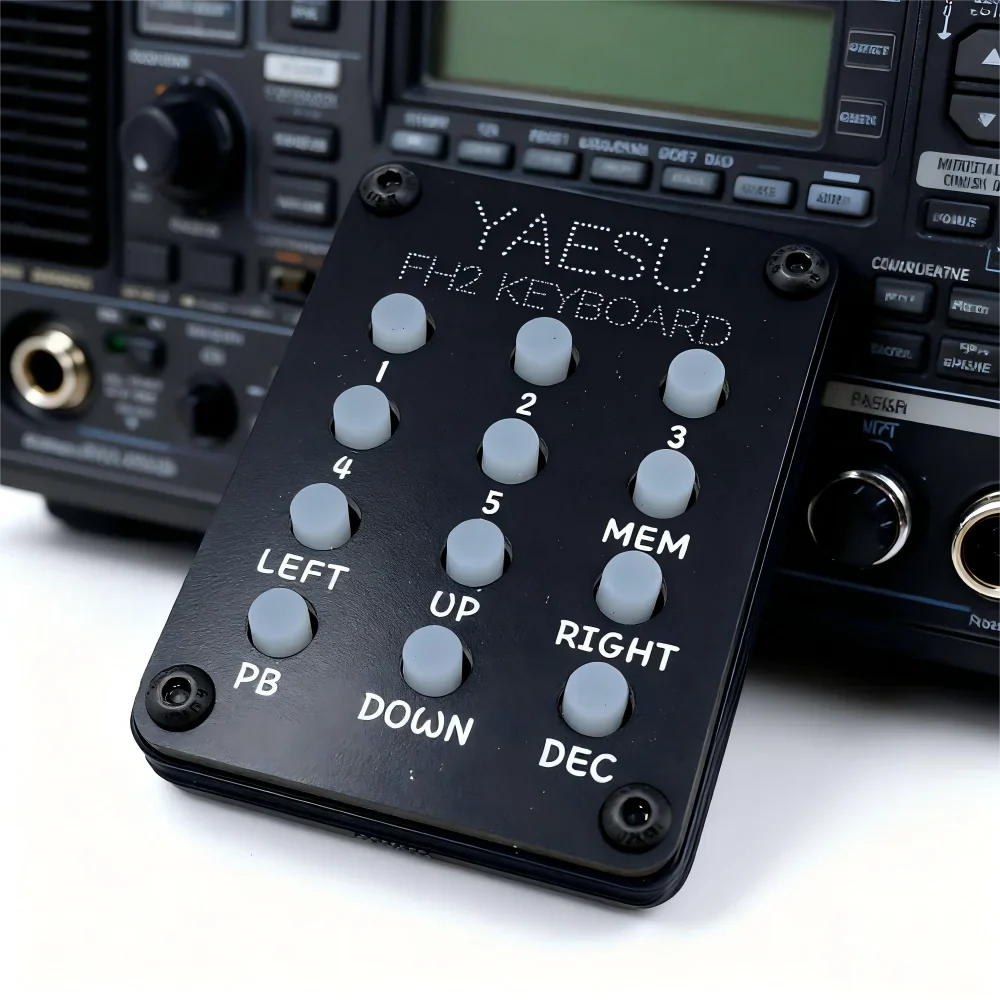

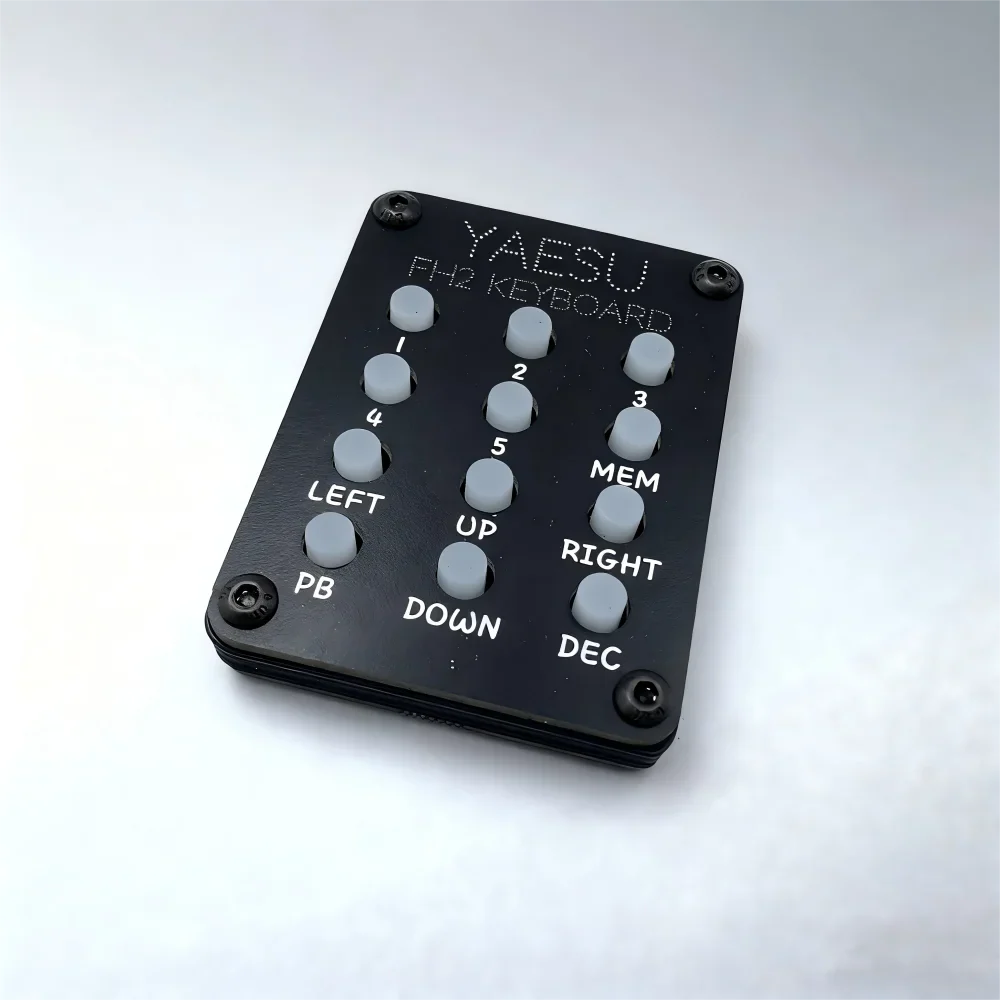

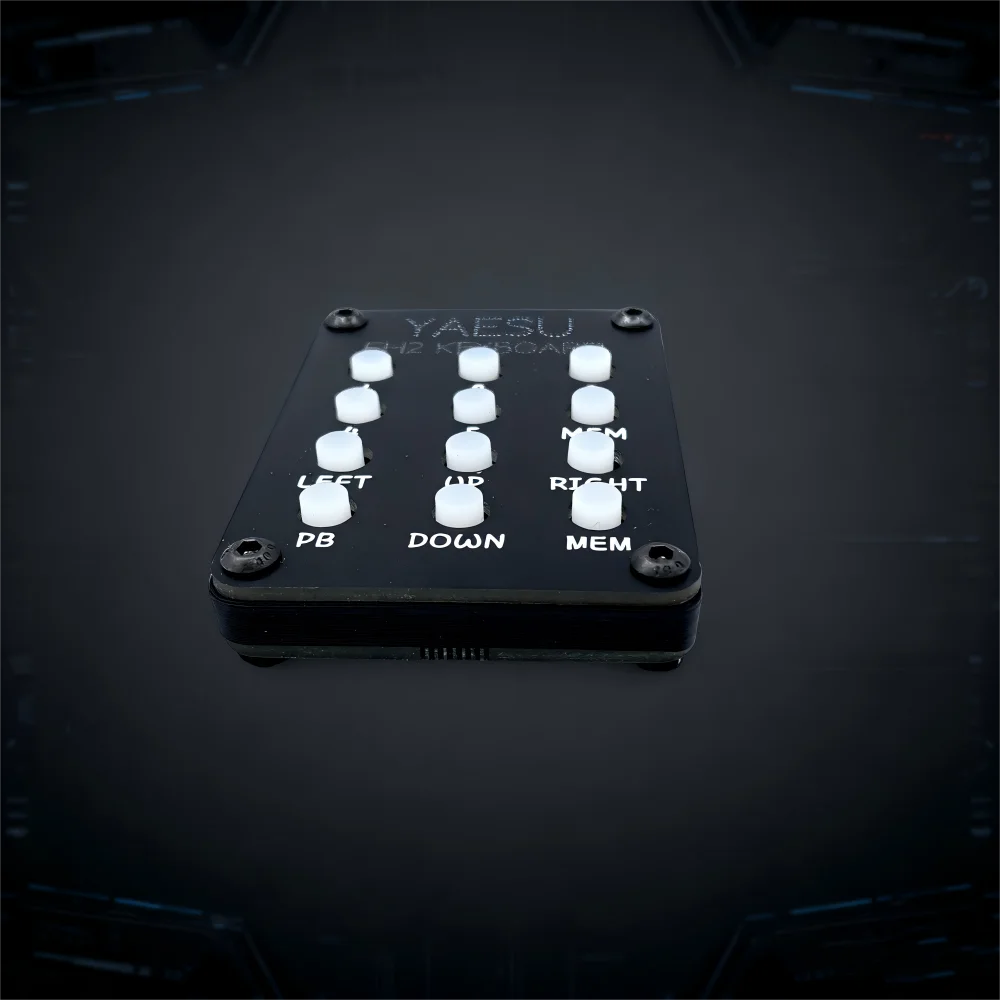

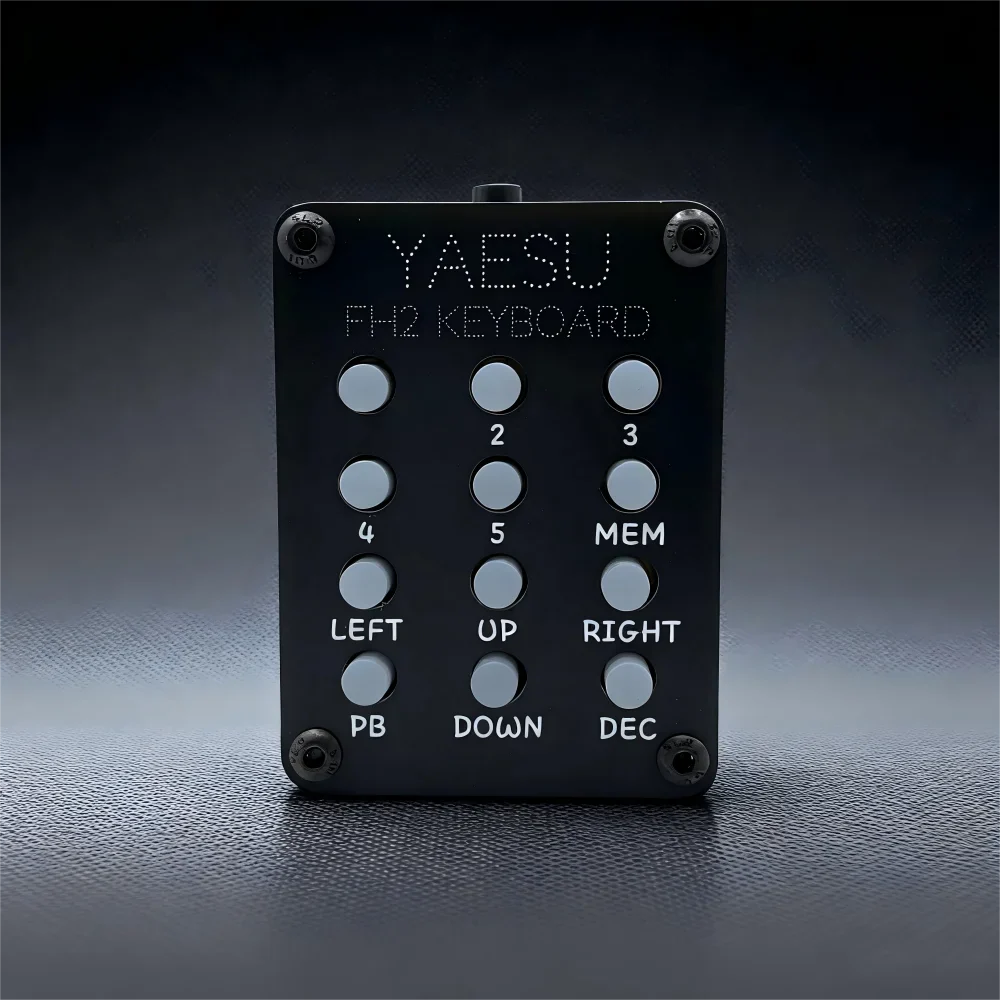

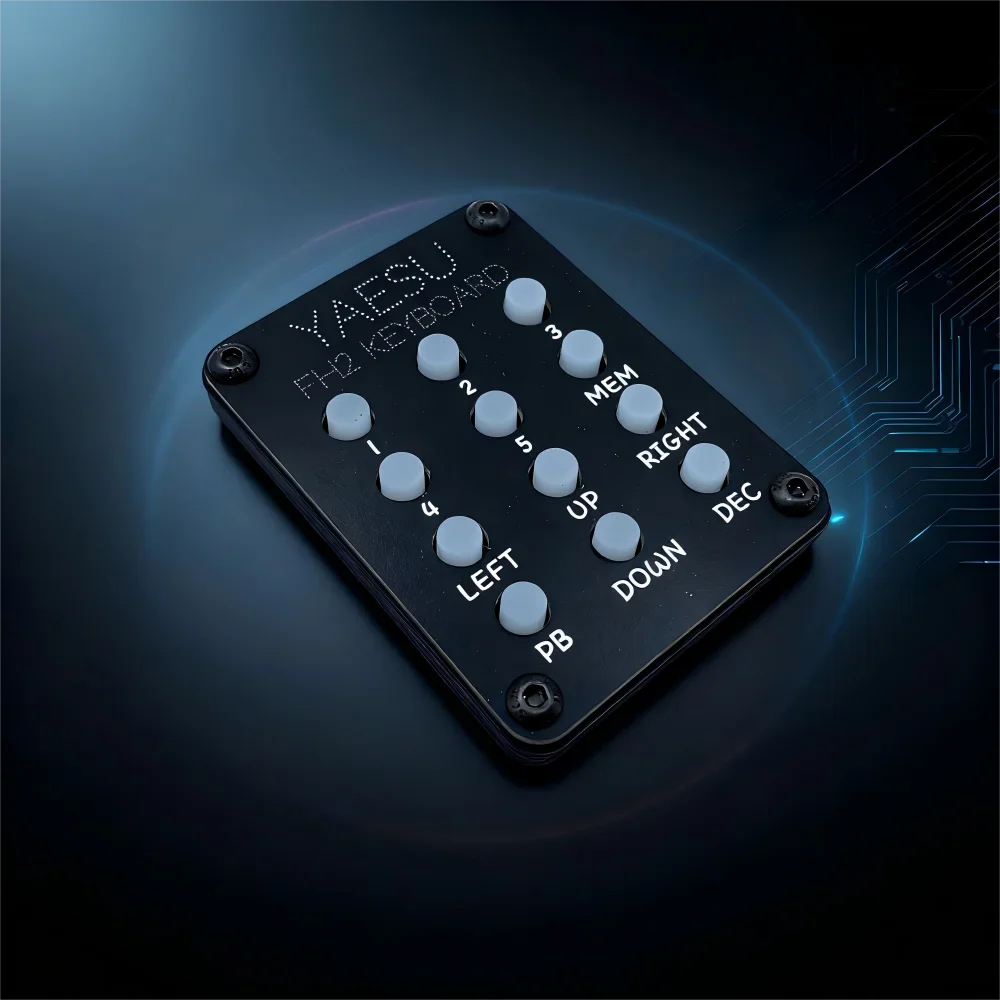

The FH-2 Keyboard Is Compatible With Yaesu Radio Stations FTDX-9000, FTDX-5000, FT-950, FT-450, FT-891 and FT-991

Characteristics:

1. Voice memory: 5 memory channels (numbers 1-5) buttons

For voice memory, each channel can store up to 20 seconds of audio at most. The "Message Memory" and "text memory" can be used for competition memory keys. Each "message memory" channel can accommodate continuous wave messages of 50 characters, using Paris Standard characters and word lengths. Each "text memory" channel can hold up to 50 characters at most.

2. Cursor Button - The cursor can move in two different directions (right/left). Usually, these buttons are used to adjust the VFO frequency. Press the button to change the frequency in the same increments as the microphone up /DWN switch. Press the button to change the frequency in a 100kHz step

3.P/B Button - When entering consecutive text, you can insert Spaces while the cursor is flashing.

4.MEM (Memory) Button - Pressing this button can store voice memory or race key memory.

5.DEC Button - When using the sequential Race number function of the RACE key, pressing this button will reduce the current race number by one position (i.e., from #198 to #197, etc.).



Parameter:

Dimensions: 60*45*8mm (excluding protruding parts)

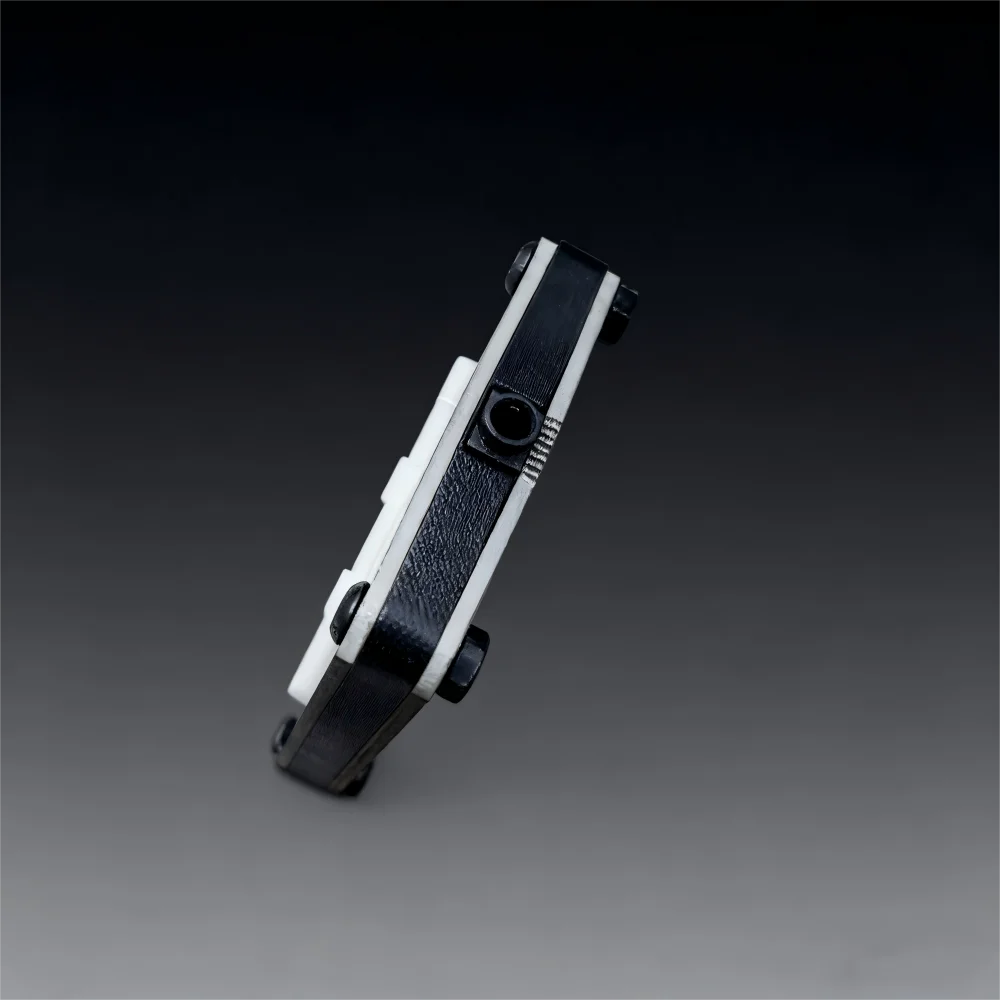

Jack: 3.5mm audio jack

Applicable models: Yaesu FTDX-9000, FTDX-5000, FT-950, FT-450, FT-891, FT-991, etc.



Shipping list：

1 x keyboard
