UNI-T Speed Tachometer 2-in-1 UT372D Laser Tachometer Contact And Non-contact Tacometro Digital RPM Meter Spin 1 to 19999 RPM
UNI-T Speed Tachometer 2-in-1 UT372D Laser Tachometer Contact And Non-contact Tacometro Digital RPM Meter Spin 1 to 19999 RPM

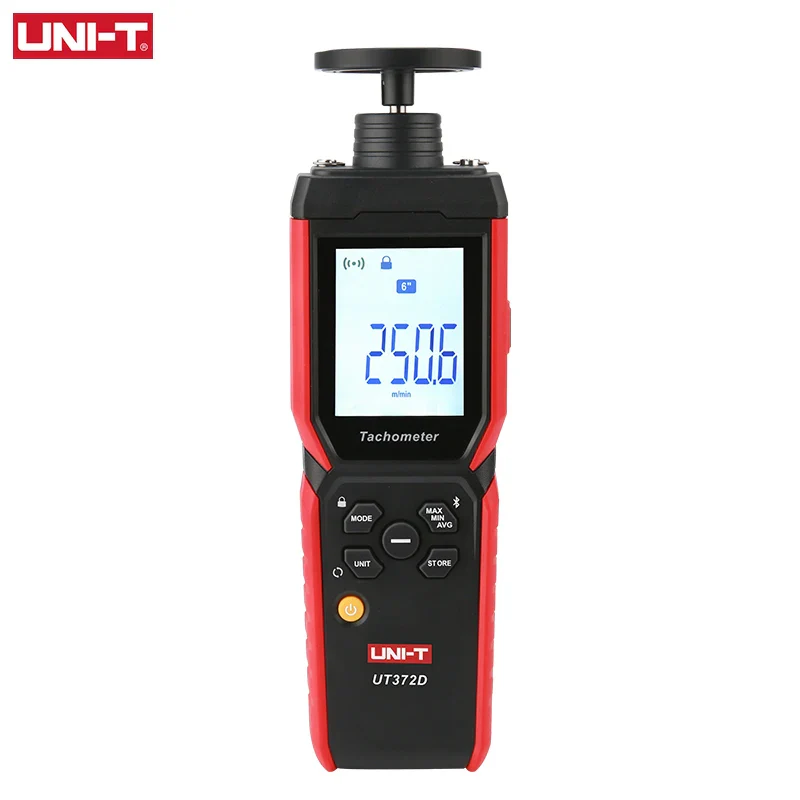

UT372D 2-in-1 Tachometer

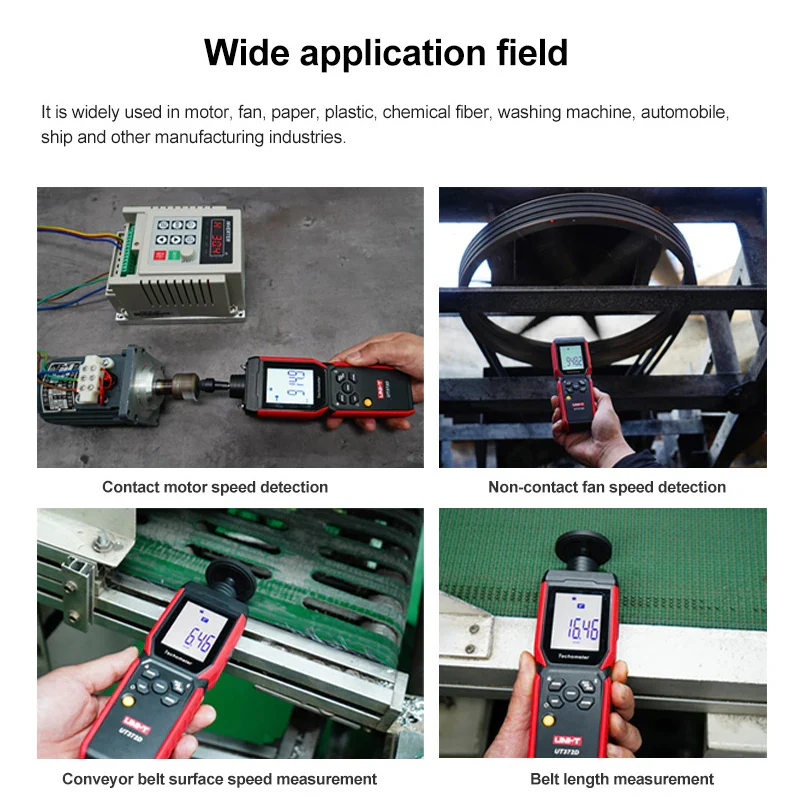

UT372D 2-in-1 Tachometer is a reliable and safe tachometer, which combines contact and non-contact measurement modes. It is mainly used to measure Revolutions Per Minute(RPM) , frequency, surface velocity and length in the fields of motors, fans, automobiles, papermaking, etc.
UT372D Speed Tachometer Features
● Contact and non-contact measurements
● MAX/MIN/AVG/HOLD
● Rotatable LCD backlight screen
● Unit conversion

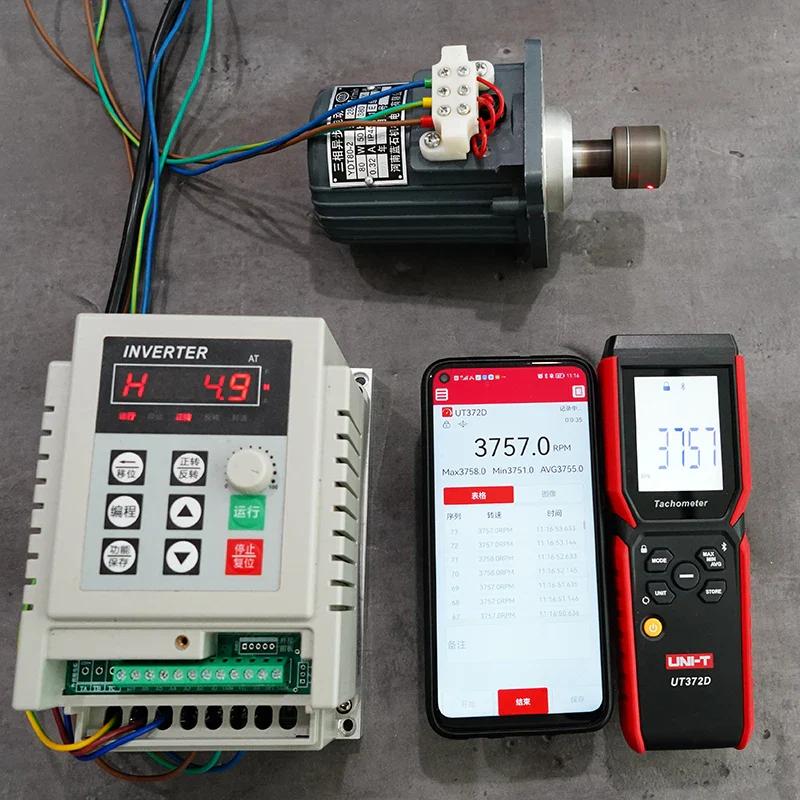

● Bluetooth APP
● Auto power off
● Data storage
● Two measurement buttons
Specifications of UT372D 2-in-1 Tachometer
|
Sepecification |
Range |
|
|
Non-contact (optical) measurement |
Rotational velocity (RPM) |
1-99,999 |
|
Frequency (HZ) |
1-1,666 |
|
|
Count(REV) |
1-99,999 |
|
|
Target distance |
50~500mm |
|
|
Contact measurement |
Rotational velocity (RPM) |
1-19,999 |
|
Frequency (HZ) |
1-333 |
|
|
Surface velocity |
0.1m |
|
|
0.1-1,999m/min |
||
|
0.4-6,550ft/min |
||
|
4-78,700in/min |
||
|
6”wheel |
||
|
0.15-1,524m/min |
||
|
0.5-5,000ft/min |
||
|
6-60,000in/min |
||
|
Length |
0-99999(m/ft/in) |
|
|
Accuracy |
±0.02% ±1 digit |
|
|
Measurement modes |
Contact RPM/Non-contact RPM/counting/frequency/Surface velocity/length |
|
|
Contact measurement unit |
m/min, ft/min, in/min,m,ft,in |
|
|
Statistical measurement |
Max/Min/Last reading/Average |
|
|
Data storage |
10 groups |
|
|
Operating temperature/humidity |
0°C~50°C; ≤80%RH |
|
|
Storage temperature |
-20°C~60°C; ≤80%RH |
|
|
Drop test |
1m |
|
|
Auto power off |
After about 15 minutes of inactivity |
|
|
General Characteristics |
||
|
Product color |
Red and grey |
|
|
Product weight |
About 181g (without batteries) |
|
|
Product size |
176 × 63 x 38mm |
|
|
Battery type |
AAA 1.5V ×3(No include) |
|
|

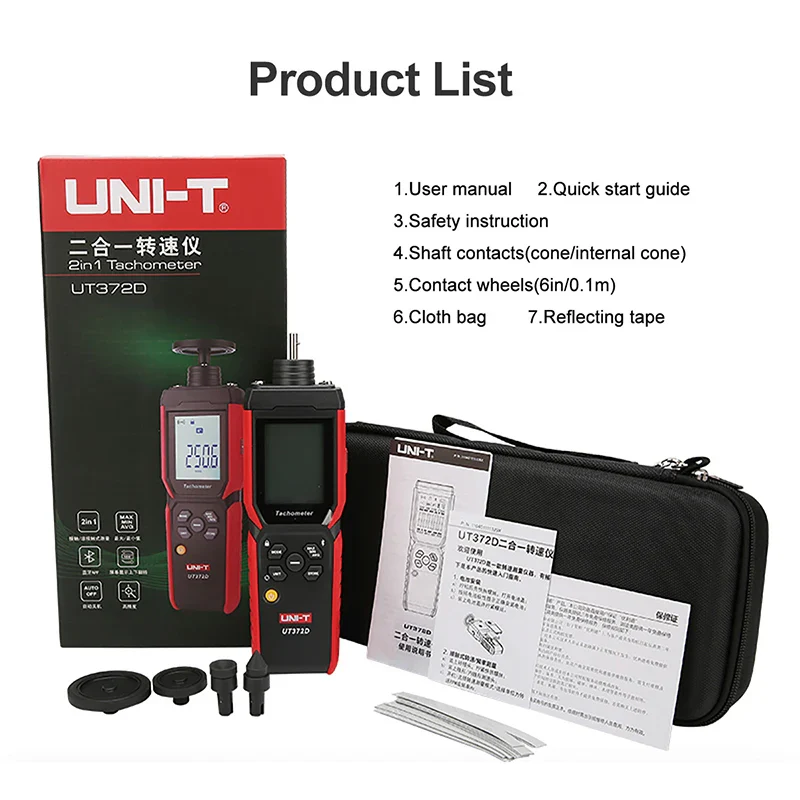

Standard accessories |
user manual,quick start guide,safety instruction,shaft contacts(cone/internal |
|
UT372D Tachometer Two measurement modes

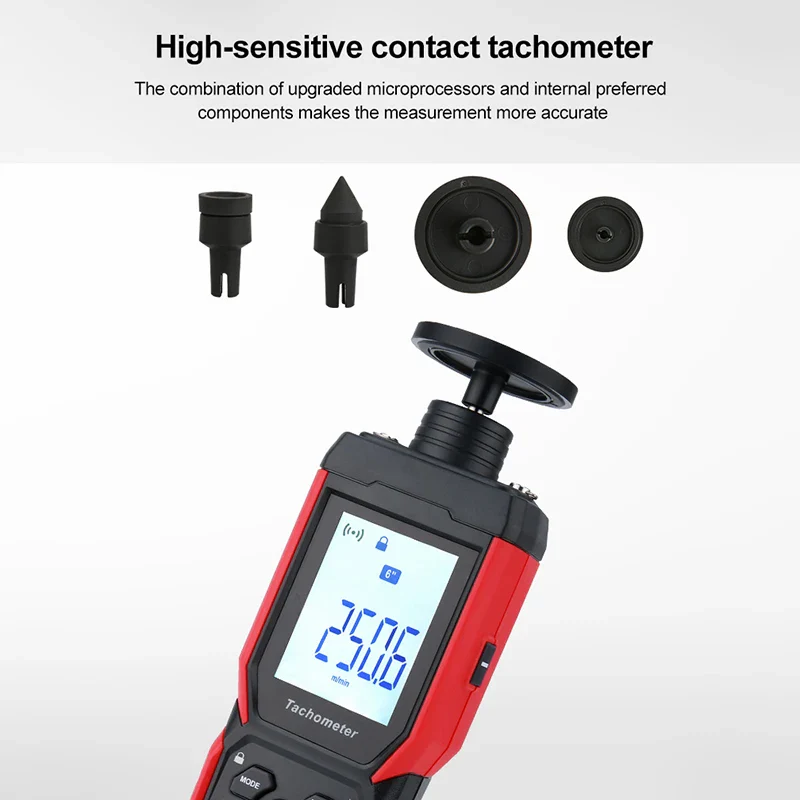

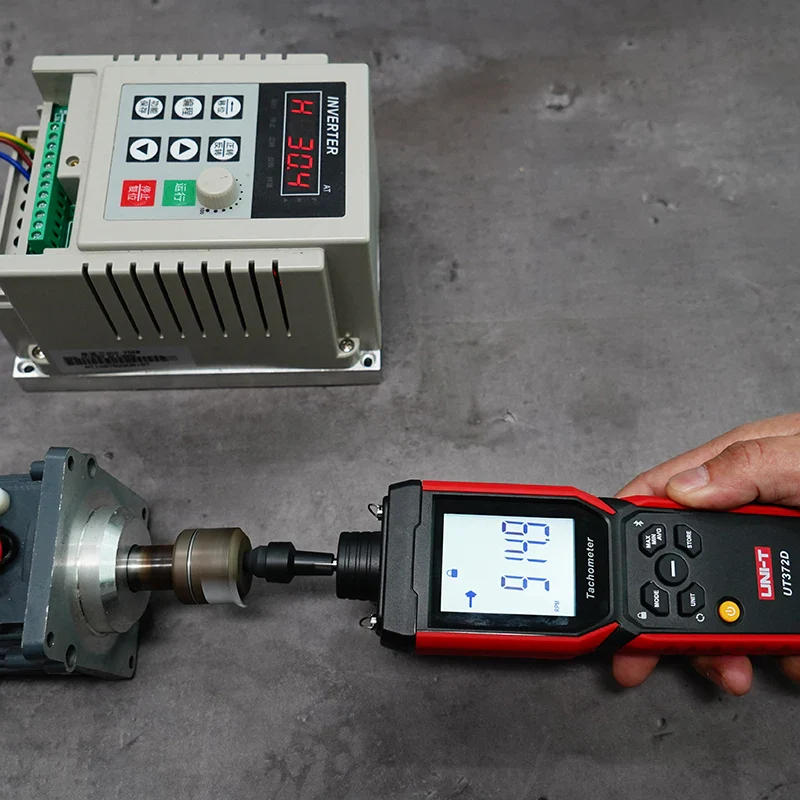

Contact and non-contact measurements
Please note: The product does not include batteries.
